220V PLC Training Equipment For Electrical Circuit Troubleshooting And Maintenance Training

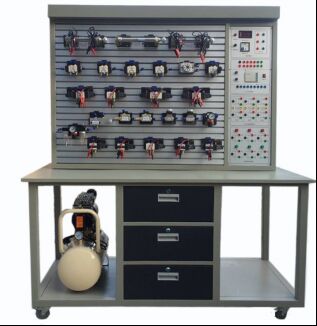

The pneumatic PLC control experimental device is based on the requirements of general textbooks such as "Hydraulic and Pneumatic Transmission" and "Pneumatic Control Technology," incorporating suggestions from faculty and students in the field. This meticulously designed and seamlessly integrated with a programmable logic controller (PLC) allows for the effective application of pneumatic principles and automatic control theory. In addition to conducting routine basic pneumatic control circuit experiments, this device can also simulate pneumatic control technology application experiments, conduct pneumatic technology course design, and facilitate the study and basic application of programmable logic controllers (PLCs).It is a valuable experimental device for mechatronics majors.

This system is suitable for teaching experiments in courses such as "Hydraulic and Pneumatic Transmission," "Pneumatic Control Technology," and "PLC Principles and Applications" offered by mechanical engineering, mechatronics, and automation majors in universities, colleges, and vocational schools. It also serves as a comprehensive experimental platform for the integration of mechanics, electronics, and pneumatics. Through hands-on experiments and course design, students can gain a more accurate and intuitive understanding of the structure of pneumatic components, the control principles of pneumatic circuits, and design methods. Through experiments, students can also master the functions, control principles, and programming techniques of PLCs

Test Bench Dimensions

1500mm * 650mm * 1700mm

Input Power

AC: 220V

Output Power

AC: 220V DC: 24V

PLC Model

Mitsubishi FX1S-20MR

DC 24V (2A) power supply unit (as shown in Figure 1-2), PLC electrical control input unit, PLC electrical control output unit, relay control unit, limit switch (normally closed, normally open).

Input Voltage

AC 220V 50Hz

Output

DC 24V/3A AC220V
