Electrical And Electronics Training Equipment With PLC Programmable Experiment Box For Laboratory

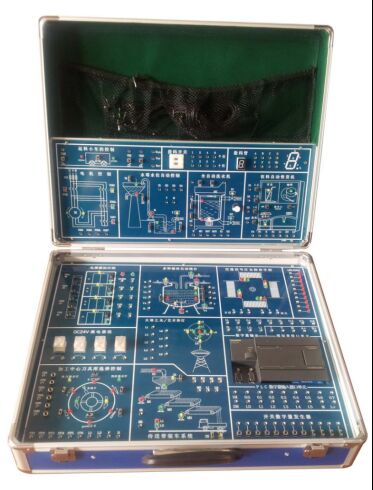

To meet the laboratory construction needs of various institutions, we have launched the "PLC Programmable Experiment Box (Configuration Industrial Control)." It integrates a programmable logic controller (PLC), programming software, and MCGS space-saving industrial control configuration software. This device allows intuitive practice with basic PLC commands, simulated experiments with multiple PLC applications, and hands-on experiments. All experiments are dynamically tracked using configuration bar graphs. The device is equipped with a Siemens (S7-200) programmable controller.

1. PLC Host: Siemens S7-SR40, 24-point input/16-point output
2. Power Input: AC220V, 50Hz
3. Programming using application software
4. Current ≥2A, overload protection
5. Communication interface (RS232) and PC/PPI cable between the PLC and the computer.
6. Add a serial port to USB interface device to facilitate use with most current laptops (user-specified requirement).
7. Connect the corresponding I/O pins to external terminals (user-specified requirement).

1. Traffic Light PLC Automatic Control Experiment
2. Fully Automatic Washing Machine PLC Automatic Control Experiment
3. LED PLC Automatic Control Experiment
4. Four-Storey Elevator PLC Automatic Control Experiment
5. Artistic Lantern PLC Automatic Control Experiment
6. Motor Automatic Control Demonstration Board
7. Star-Point Start PLC Automatic Control Experiment
8. Unmanned Vending Machine PLC Automatic Control Experiment
9. Water Tower Automatic Water Supply Experiment
10. Automatic Material Feeding and Loading Experiment
11. Relay Control Experiment
12. Buzzer Control Experiment
13. Basic Programming Practice for Programmable Controllers
14. Dynamically track any of the above experiments using pre-edited configuration bar graphs for teaching experiments
15. Students can edit configuration bar graphs based on the specific requirements of the experimental project. Teaching experiments can be conducted according to the school's requirements.
