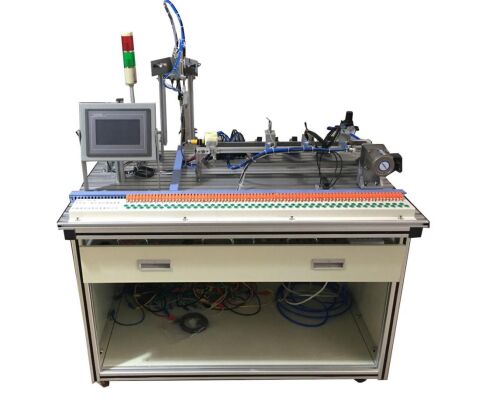

Name: Versatile Mechatronics Training Equipment For Hands On Electromechanical Technology
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F031
Availability: InStock

Home > Products > Mechatronics Training Equipment >

Versatile Mechatronics Training Equipment For Hands On Electromechanical Technology

versatile mechatronics training equipment

versatile vocational training equipment

hands on vocational training equipment

Place of Origin:

Henan,China

Brand Name:

Ruimu

Certification:

ISO9001/ISO45001/ISO14001

Model Number:

RM-F031

Chat Now

Request A Quote

Product Details

Warranty:

1 Year

Product Name:

Mechatronics Comprehensive Training And Assessing Equipment

Function:

Vocational Skill Training,Pneumatic Mechanical Training

Oem:

Support,Accept

Technology:

Electromechanical

Type:

School Furniture

Category:

Industrial Automation/Mechatronics Trainer,Mechatronics Training Equipment

Keywords:

PLC Training Box; Mechatronics Training Kit

Highlight:

versatile mechatronics training equipment

versatile vocational training equipment

hands on vocational training equipment

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Packaging Details

Wooden packaging

Delivery Time

30-60days

Payment Terms

T/T

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Versatile Mechatronics Training Equipment for Hands On Electromechanical Technology Application and Equipment Maintenance Training

Comprehensive hands-on training system for electromechanical technology applications and equipment maintenance training.

Product Overview

This advanced training device is designed for teaching and practical training across multiple disciplines including electromechanical equipment installation, maintenance, electrical operation and control, and programmable controller technology applications.

Ideal for both electromechanical and non-electromechanical programs, covering essential course modules such as "Programmable Controller Technology," "Electrical Appliance and PLC Control Technology," and "PLC and Its Applications."

System Configuration

The complete system includes:

Training bench with open, detachable structure
Typical mechatronics equipment mechanical components
PLC module and frequency converter module
Pushbutton module and power supply module
Simulated production equipment training module
Terminal block and comprehensive sensor array

Flexible design allows assembly of various production equipment configurations to meet specific teaching or competition requirements.

Technical Specifications

AC Power Supply	Three-phase, five-wire, 380 V ±10% 50 Hz
Operating Temperature	-10°C to 50°C
Operating Humidity	≤90% (no condensation)
Dimensions	1200 mm * 800 mm * 1500 mm
Power Consumption	≤1.5 kVA

Practical Training Applications

Pneumatic System Installation & Commissioning

Comprehensive pneumatic technology training using:

Single-rod cylinders and double-rod cylinders
Rotary cylinders and solenoid directional valves
Magnetic switches and speed control circuits

Training projects include directional control, speed regulation, swing control, sequence control, and complete pneumatic manipulator systems.

Electrical Control & PLC Programming

Advanced PLC application development covering:

Motor control circuits (forward/reverse, speed control)
Pneumatic system programming (direction, sequence, manipulator control)
Belt conveyor control systems
Complete mechatronic equipment and automated production line programming

Electromechanical Equipment Installation

Hands-on mechanical installation training including:

Drive coaxiality adjustment techniques
Belt conveyor installation and calibration
Handling robot equipment commissioning
Object sorting and feeder equipment setup

Control System Integration

Complete system integration projects:

Sensor installation and configuration
Automated manipulator and conveyor control
PLC control system implementation
Full automated production line commissioning

Assessment & Skills Evaluation

This training system supports comprehensive skills assessment and competition preparation in:

Mechanical component assembly and adjustment
Mechatronic equipment installation and commissioning
Electrical circuit installation proficiency
Pneumatic system setup and troubleshooting
Control programming for complex systems
Complete automated control system implementation
