Name: Multifunctional Educational Training Equipment For Maintenance Electrician Skills Training
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F007
Availability: InStock

Home > Products > Basic Electrician and Maintenance Electrician Training Equipment >

Multifunctional Educational Training Equipment For Maintenance Electrician Skills Training

Multifunctional electrician training equipment

Basic electrical training kit

Safety Features Electrical Skills Training System

Place of Origin:

HENAN,CHINA

Brand Name:

Ruimu

Certification:

ISO9001/ISO45001/ISO14001

Model Number:

RM-F007

Chat Now

Request A Quote

Product Details

Product Name:

Electrical Training Equipment Models

Function:

Training,wide Use For The Training And Teaching

Application:

Physical Electrics Experiment

Type:

Electrical And Electronic Basis Examination&training Equipment Series

Item Name:

Primary Electrical Lighting Skills Assessment Training Device

Usage:

Education School Sensor Experiment,Power Research

End User:

Professional School,Secondary School

Highlight:

Multifunctional electrician training equipment

Basic electrical training kit

Safety Features Electrical Skills Training System

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

Wooden packaging

Delivery Time

30-60days

Payment Terms

T/T

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Multifunctional Electrician Training Equipment With Standardized Structure And Advanced Safety Features For Maintenance Electrician Skills Training

Electrical Engineering Training Device

Product Overview

This advanced electrical training device features a safe, flexible, and standardized structure with compatibility for various electrical components, delivering exceptional multifunctionality. Designed for comprehensive practical training in electrical engineering disciplines, it enables hands-on learning in component assembly, circuit connection, and control system debugging.

Educational Applications

Ideal for practical training courses including Electrical Engineering, Electrical Skills Training, Electric Traction Control Circuits, Intermediate and Advanced Electrician Skills Training, Maintenance Electrician Skills Training, and Electrical Control Technology at vocational schools and technical institutions. The system emphasizes practical skills development through component handling, assembly techniques, circuit wiring, and control system troubleshooting.

Training Methodology

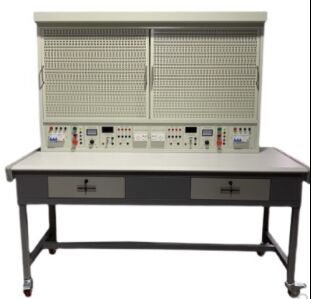

The training system comprises a dedicated training table and modular mesh plate. Students independently layout, install components, and complete all wiring operations, developing essential hands-on skills and operational capabilities. Learners can select specific training projects and corresponding components, facilitating comprehensive intermediate and advanced maintenance electrician skills development. The device also serves as an assessment platform for electrician certification examinations.

Technical Specifications

Input Voltage	Three-phase, four-wire, 380V ±10%, 50Hz
Operating Environment	Ambient temperature: -5°C to +40°C Relative humidity: <85% (25°C) Altitude: <4000m
Device Capacity	<3kVA
Dimensions	1600mm * 700mm * 1650mm
Safety Features	Automatic air switch for power control, emergency stop protection, voltage and current leakage protectors, overvoltage protection, overcurrent protection, overload protection, and isolation transformer for comprehensive training safety

Practical Training Projects

Three-Phase Asynchronous Motor Inching Control Circuit
Three-Phase Asynchronous Motor Self-Lock Control Circuit
Three-Phase Asynchronous Motor One-Way Inching Start Control Circuit
Three-Phase Asynchronous Motor Two-Location Control Circuit
Forward/Reverse Inching and Start Control Circuit
Double Interlock Forward/Reverse Control Circuit
Automatic Shuttle Control Circuit
Position Switch Automatic Stop Forward/Reverse Start Control Circuit
Automatic Shuttle Control Circuit with Inching
Three-Phase Asynchronous Motor Star/Delta Control Circuit
