Name: ElectricalCircuit Analysis Training Equipment With Overload Protection And Connectivity
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F097
Availability: InStock

Home > Products > Electrical Training Equipment >

ElectricalCircuit Analysis Training Equipment With Overload Protection And Connectivity

overload protection hydraulic training equipment

overload protection electrical training equipment

odm hydraulic training equipment

Place of Origin:

HENAN,CHINA

Brand Name:

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

RM-F097

Chat Now

Request A Quote

Product Details

Safetyfeatures:

Overload Protection, Insulated Terminals

Modelnumber:

RM-F097

Material:

Metal

Trainingmodulesincluded:

Circuit Analysis, Motor Control, Wiring, And Safety

Productname:

Electrical Training Equipment

Warrantyperiod:

1 Years

OEM:

Accept OEM Or ODM

Highlight:

overload protection hydraulic training equipment

overload protection electrical training equipment

odm hydraulic training equipment

Payment & Shipping Terms

Minimum Order Quantity

1unit

Packaging Details

wooden packing

Delivery Time

30-45 work days

Payment Terms

T/T,Western Union

Supply Ability

5 unit/30 days

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Electrical Training Equipment

Comprehensive training device designed to improve understanding of electrical circuits, wiring diagrams, and fault diagnosis techniques through hands-on practical experience.

Training System Overview

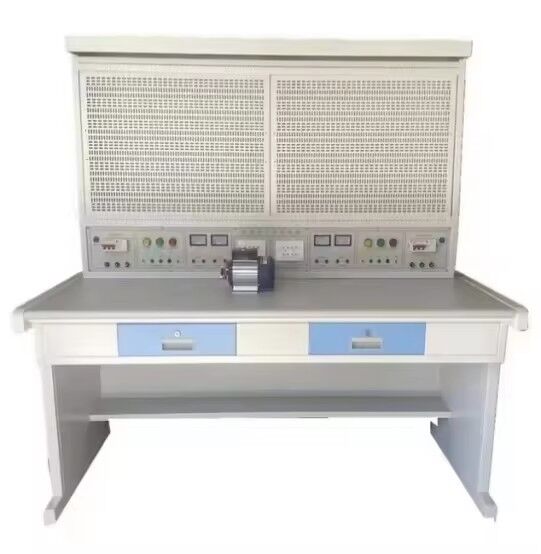

This complete electrician skills training system includes a training table, mesh board, and practical components. Students independently arrange components according to training circuits and complete all installation and wiring, simulating real industrial environments.

Training Capabilities

Provides comprehensive training in simulated operation, installation, and commissioning of machine tool circuits, motor control circuits, and lighting power distribution systems. Strengthens students' hands-on skills and practical application abilities while serving as an assessment tool for electrician qualifications.

System Components

Common Area with voltage-type and current-type leakage protection, plus indicator light for external power input
Dual power options: 380V line voltage or 220V phase voltage with single-phase power socket and line voltage input indicator meter
220V power socket (three-hole and two-hole, 16A) for external instruments and computers
Sturdy training table constructed with double-layered, matte, densely grained plastic-sprayed iron and fireproof, waterproof, wear-resistant high-density board top
Convenient side drawers for component storage

Technical Specifications

Parameter	Specification
Input Power	Three-phase, four-wire ~380V ±10%, 50Hz
Operating Temperature	-5°C to +40°C
Relative Humidity	<85% (at 25°C)
Device Capacity	<1.5KVA
Dimensions	1700mm * 700mm * 1650mm

Dimensions may vary slightly - subject to actual shipment specifications
