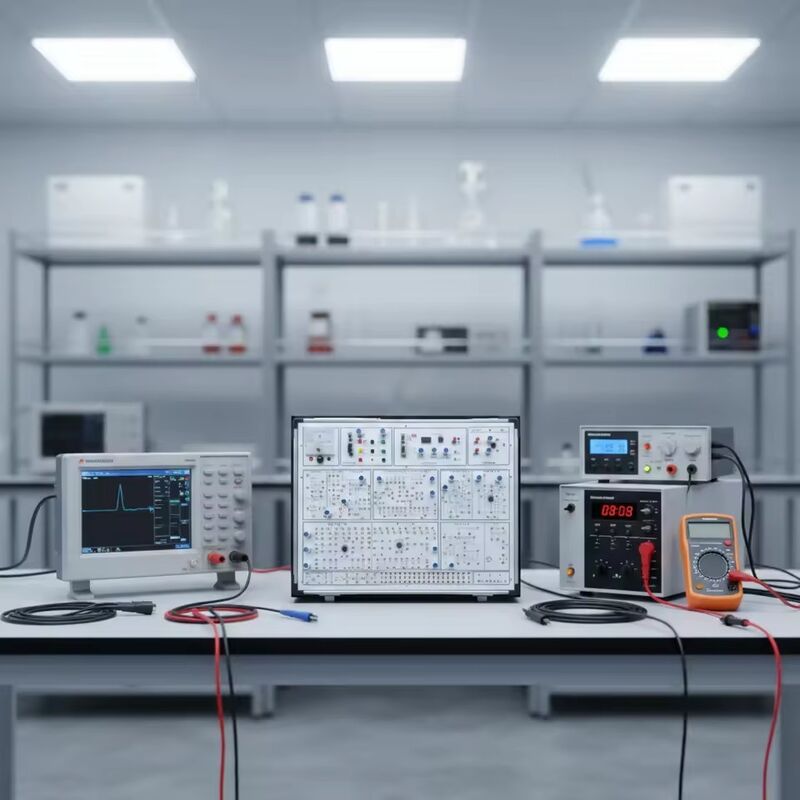

Analog Circuit Power Electronics Trainer Kit Box for Vocational Training

This comprehensive educational training equipment features an aluminum-wood alloy enclosure, high-performance linear power supply, and dedicated experimental circuit board. The system employs fixed function module methodology with clearly marked circuit principles and component symbols for enhanced learning.

Components can be safely soldered on the reverse side of the circuit board for durability and reliability, or mounted on the front for direct visibility and hands-on understanding. Each module includes a schematic diagram for immediate reference during experiments.

• Basic Single-Stage Amplifier Circuit
• Two-Stage Amplifier Circuit
• Negative Feedback Amplifier Circuit
• Emitter Follower
• Differential Amplifier Circuit
• Integrated Power Amplifier
• Complementary Symmetrical Power Amplifier
• Single-Phase Half-Wave, Full-Wave, and Bridge Rectification and Filtering Circuit Experiments
• Integrated Voltage Regulator Circuit
• RC Sine Wave Oscillator
• LC Oscillator and Frequency Selective Amplifier
• Current/Voltage Conversion Circuit
• Voltage/Frequency Conversion Circuit
• Forward and Reverse Characteristics of a Diode
• Input and Output Characteristics of a Transistor
• Parallel DC Regulated Power Supply

• Analog Operational Circuit
  • Voltage Follower
  • Inverting Proportional Amplifier
  • Non-Inverting Proportional Amplifier
  • Inverting Summing Proportional Amplifier
  • Dual-Input Summing Amplifier
• Integral and Differential Circuits
  • Integral Circuit
  • Differential Circuit
  • Calculus Circuit
