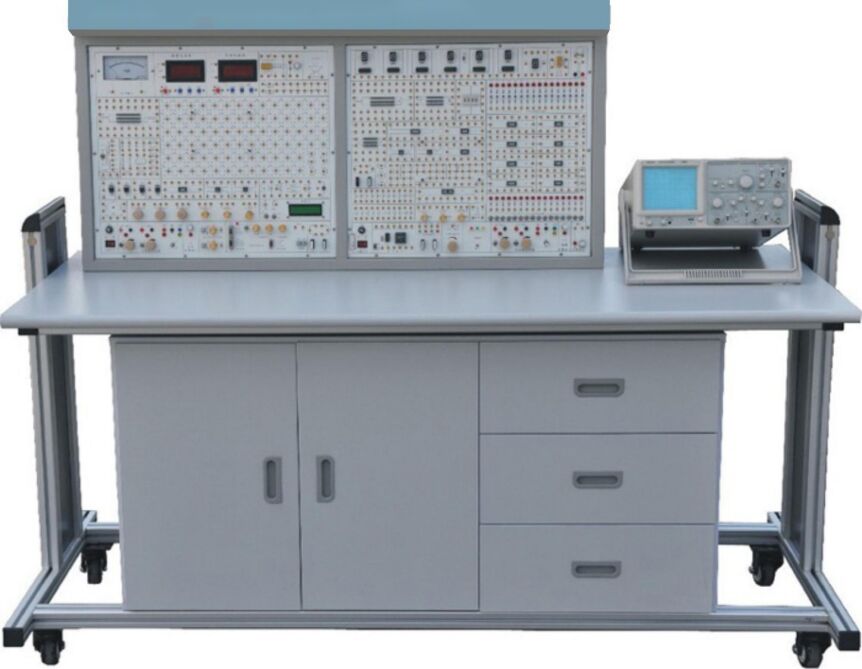

Comprehensive Electronics Training Device (Without oscilloscope)
＞Overview
The "Comprehensive Electronics Training Device" is a newly developed experimental device based on the requirements of the current teaching experiment syllabus for "Analog Electronics Technology" and "Digital Electronics Technology" in my country, as well as the needs and suggestions of various higher education institutions for this teaching experimental equipment. It features grounding protection and leakage protection functions, and its safety meets relevant national standards. This device is particularly suitable for newly built or expanded laboratories in vocational colleges, secondary vocational schools, and technical schools,providing ideal experimental equipment for quickly establishing experimental courses.
＞Experimental Projects
(I) Analog Circuit Experiments
1. Single-stage amplifier circuit
2. Two-stage amplifier circuit
3. Negative feedback amplifier circuit
4. Emitter follower
5. Differential amplifier circuit
6. Proportional summation circuit
7. Integrator and differentiator circuit
8. Waveform generator circuit
9. Active filter
10. Voltage comparator 11. IC Circuit RC Sine Wave Oscillator
12. Integrated Power Amplifier
13. Rectifier, Filter, and Parallel Voltage Regulator Circuit
14. Series Voltage Regulator Circuit
15. Integrated Voltage Regulator
16. RC Sine Wave Oscillator
17. LC Oscillator and Frequency Selective Amplifier
(II) Digital Circuit Experiments
1. Parameter Testing and Use of TTL Integrated Logic Gates
2. Testing of CMOS Integrated Logic Gates
3. Logic Function Experiment of Gate Circuits
4. Testing of Commonly Used Combinational Logic Devices
5. Half Adder, Full Adder, and Logic Operation Experiments
6. Seven-Person Voting Circuit and Blood Type Detection Circuit
7. Functional Testing of RS Flip-Flops
8. Logic Function and Main Parameter Testing of JK and D Flip-Flops
9. Tri-State Output Trigger and Latch
10. Asynchronous Binary Counter Experiment
11. Synchronous Binary Counter Experiment
12. Functional Testing of Shift Registers
13. Counting, Decoding, and Display Circuit Experiments
14. 555 Integrated Circuit and Applications
15. Waveform Generation and Monostable Multivibrator
16. Design of Sequence Detector
17. D/A Digital-to-Analog Converter
18. A/D Analog-to-Digital Converter
19. Manually Interventional Traffic Light Controller
If you need more information,please contact us to obtain it.
