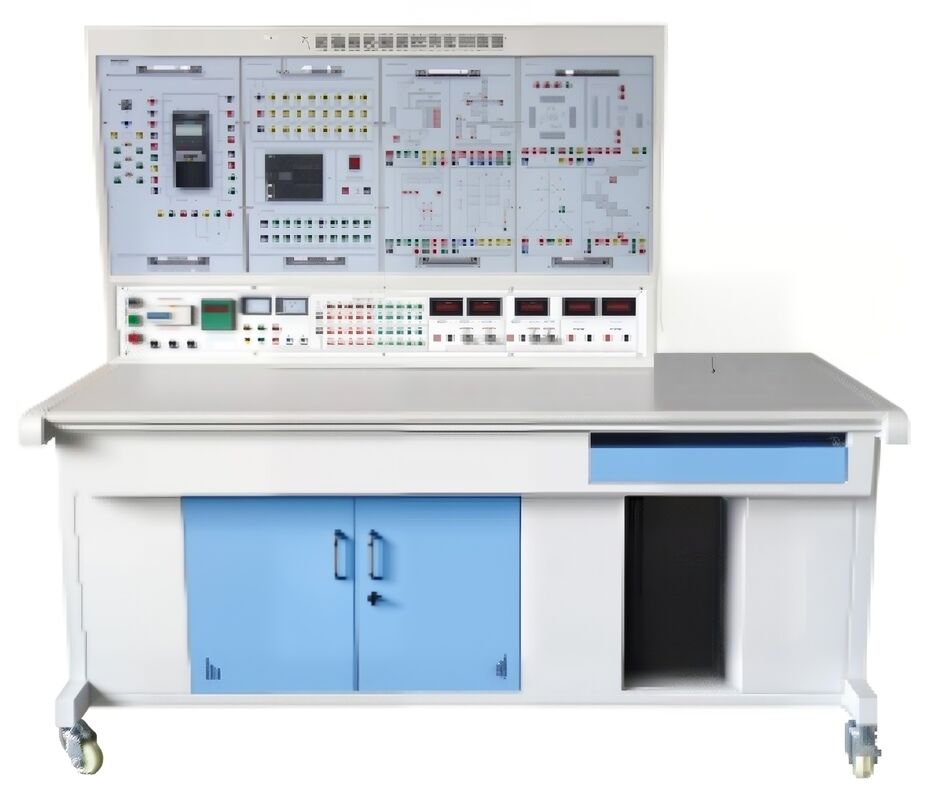

Modular Structure PLC Electrical Trainer Kit For Vocational Training

Logic Controller (PLC) and Electrical & Electronic Integrated Experiment Device integrates a PLC, programming software, simulation control experiment box, physical components, frequency converter , and electrical and electronic components. It allows for intuitive training of basic PLC instructions, simulation experiments of multiple widely used PLC applications, and physical control experiments. It also provides excellent conditions for high-level design and development experiments. It can complete multiple electrical control experiments.

This training device is suitable for practical training in vocational colleges and technical schools for majors such as electromechanical equipment installation and maintenance, electromechanical technology application, electrical operation and control, electrical technology application, and electronic appliance application and maintenance, as well as for non-mechanical majors in courses such as "Programmable Logic Controller Technology," "Electrical and PLC Control Technology," "PLC and its Applications," and "Variable Frequency Speed Control Technology." It is also suitable for PLC practical training and skills assessment in technical schools, vocational training schools, vocational education centers, and assessment stations.

1. The device adopts a modular structure, making it easy to replace experimental modules. If you need to expand the functions or develop new experiments, you only need to add experimental module boxes, so it will never be obsolete.
2. Port wiring method: The connection between the PLC host and the experimental module box adopts a self-locking snap-fit single-wire point-by-point connection to improve the experimenter's hands-on and thinking ability and deepen their understanding of the structure and function of the PLC.
3. It adopts Mitsubishi FX3U-48MR/ES-A (AC/DC/PLY) PLC series programmable controllers, which adopt a modular design and can be configured into different control systems according to different needs.

• AC power supply: Three-phase five-wire AC 380 V±10% 50Hz;
• Temperature: -10～50℃; Ambient humidity: ≤90% with no water droplets condensing;
• Total power consumption: ≤1.0 kVA;
• Safety Protection Measures: The desktop of the training table is made of high-insulation, high-strength, and high-temperature resistant material. It has grounding protection and leakage protection functions, and its safety meets relevant national standards. It uses high-insulation safety sockets and high-strength safety experimental wires with insulating sheaths .
• External dimensions : 1600mm * 700mm * 1560mm ±10%
