PLC Electronics Training Equipment Modular Flexible Automated Production Line Training System

The Modular Flexible Automated Production Line Training System is a typical mechatronics and automation product developed for vocational colleges, technical schools, education and training institutions, etc. It is suitable for teaching and training of related majors including Mechanical Manufacturing and Automation, Mechatronics, Electrical Engineering and Automation, Automation Engineering, Control Engineering, Measurement and Control Technology, Computer Control, Automatic Control, Mechatronic Engineering, Mechanical Design and Theory, etc. Designed specifically for teaching on the basis of being close to the industrial production and manufacturing site, it strengthens various control technologies and engineering practical abilities.

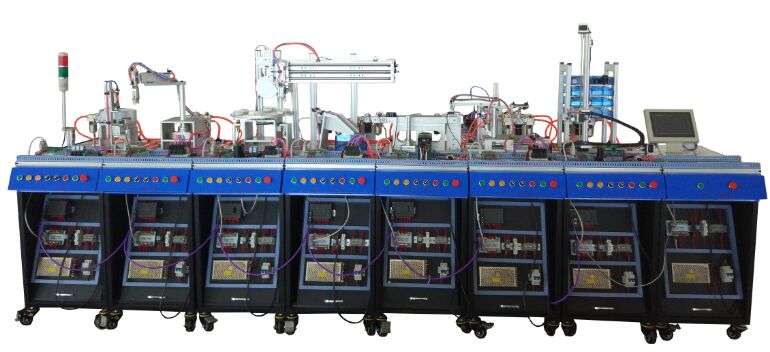

The training system consists of 8 units, namely:

• Feeding and Detection Unit
• Handling Unit
• Processing and Detection Unit
• Handling and Sorting Unit
• Variable Frequency Conveying Unit
• Assembly Unit
• Assembly and Handling Unit
• Classification Unit

The control system can be controlled by PLC of Siemens, Mitsubishi or Omron, with good flexibility. That is, each station is independently controlled by a set of PLC control system. After the training of basic unit modules, adjacent two, three... up to eight stations can be connected together to learn the control, programming, assembly and debugging technologies of complex systems.

The training system integrates a variety of control technologies in mechatronics major such as pneumatic, motor drive and control, PLC, sensors, etc. It is suitable for engineering practice and curriculum design of students of related majors, as well as training of engineering and technical personnel who are new to their posts, and is an ideal equipment for cultivating mechatronics talents.

Input power supply: Single-phase three-wire AC220V±10% 50Hz

Working environment: Temperature -10℃～40℃, Relative humidity ≤85% (25℃), Altitude ＜4000m

Device capacity: ≤1.5kVA

Overall dimensions: Approximately 380cm*175cm*160cm

Safety protection: With leakage voltage and leakage current protection, in line with national safety standards
