Digital Analog Circuit Electrical Training Box For Electrical Training

Product Introduction

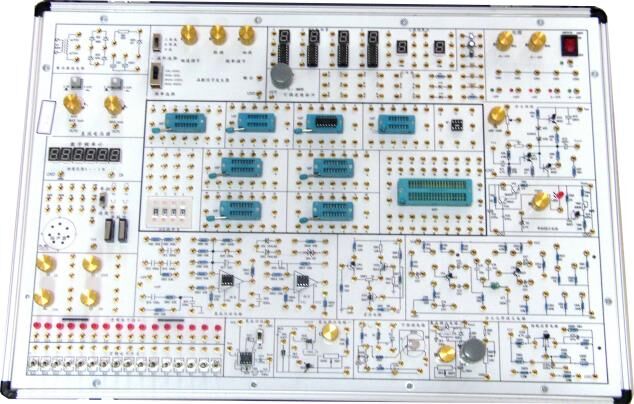

RM-F129 Digital/Analog Circuit Experiment Box is designed based on the teaching experiment requirements specified in the latest syllabus, integrating teaching experience from many professional teachers and the advantages of similar products. It covers most of the experiment contents in Analog Electronic Technology Fundamentals and Digital Circuit Fundamentals, providing both verification circuits for beginners and an extended platform for curriculum design.

System Features

• Strong expansibility: The mainboard is equipped with commonly used power supplies, signal sources, input interfaces, output display interfaces, measurement units, experiment expansion areas and experiment module circuits for digital and analog electronics experiments, supporting various experiments and curriculum design to enhance applicability and expansibility.
• Experiment schematics printed on the board: Students build circuits according to the printed schematics, cultivating independent thinking and practical operation abilities.
• Locking gold-plated jacks: Fixed by soldering, with features of non-loosening, anti-oxidation, long service life, reliable connection and easy maintenance.
• Over-current protection & automatic recovery: All power outputs are equipped with over-current protection and automatic recovery functions.
• Integrated aluminum alloy case: Firm, non-deformable, lightweight, with excellent insulation safety; the flip cover is easy to operate, with an elegant and high-grade appearance.

Experiment Items

(A) Analog Electronics Experiments

1. Practice of common electronic instruments; diode and transistor parameter measurement with multimeter
2. Single-stage amplifier circuit
3. Two-stage amplifier circuit
4. Negative feedback amplifier circuit
5. Emitter follower
6. Differential amplifier circuit
7. Parameter test of integrated operational amplifier
8. Proportional summing operation circuit
9. Integrator and differentiator circuit
10. Waveform generation circuit
11. Active filter
12. Voltage comparator
13. Integrated RC sine-wave oscillator
14. Integrated power amplifier
15. Rectifier, filter and shunt voltage regulator circuit
16. Series voltage regulator circuit
17. Integrated voltage regulator
18. RC sine-wave oscillator
19. LC oscillator and frequency-selective amplifier
20. Current-to-voltage conversion circuit
21. Voltage-to-frequency conversion circuit
22. Complementary symmetry power amplifier
23. Waveform conversion circuit
24. Field-effect transistor experiment
25. Silicon controlled rectifier (SCR) circuit
