Electrical Training Equipment Comprehensive Kit Including Various Electrical Modules

Ø Product Introduction

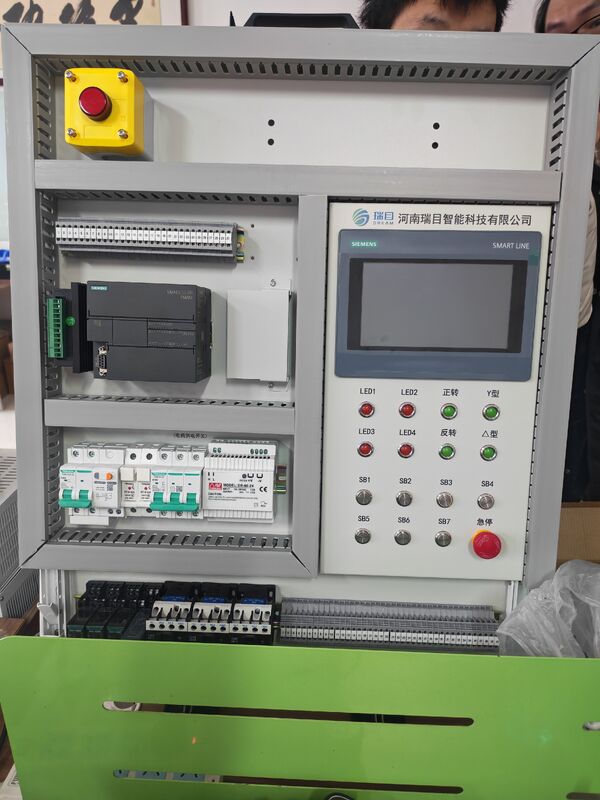

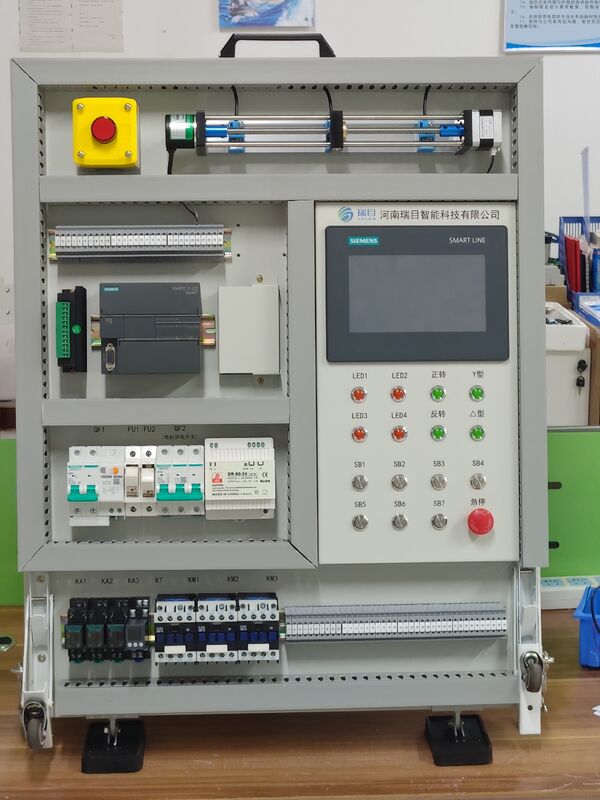

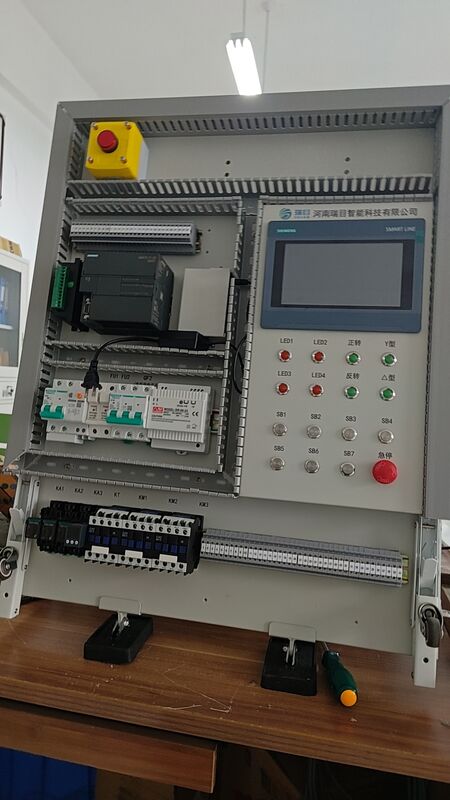

The RM-A003 portable electrician training device features a folding screen design and includes two mesh circuit boards. Components are selected based on required functionality. Guided by systems theory and centered around skills training, it emphasizes a student-centered approach, prioritizing knowledge as a tool for skill development. Its focus is on enabling students to acquire comprehensive skills in the shortest possible time.

Corresponding plans are formulated based on the skill requirements for junior, intermediate and senior electricians in the national occupational certification standards, which are suitable for selection by trainees. Teaching can be combined with reality and conducted in a combination of lectures and guided practical training. In combination with relevant standards, according to the knowledge structure and categories, it mainly includes power control circuit installation and maintenance. Teaching is mainly based on centralized lectures (demonstrations) and students' independent practice.

Ø Main technical parameters

1. Working environment: temperature 0℃~35℃ relative humidity: ≤90%;

2. Power supply: AC220V±10%, 50Hz Power consumption: ≤1kW;

3. Overall dimensions: (length * width * height) 750 * 600 * 20 (unit: mm);

4. Equipment weight: ≤40kg;

Ø Main Features

1. Training and practice on troubleshooting and debugging of PLC-controlled three-phase asynchronous motor inching control circuit

2. Installation, debugging, troubleshooting and practical training on PLC-controlled three-phase asynchronous motor forward and reverse control circuits

3. Installation, debugging and troubleshooting of one-way full-voltage starting circuit for three-phase asynchronous motor controlled by PLC

4. Training and practical experience in installation, debugging and troubleshooting of PLC-controlled three-phase asynchronous motor multi-location control circuits

5. Installation, commissioning and troubleshooting training and practical operation of the sequential control circuit of two PLC-controlled three-phase asynchronous motors
