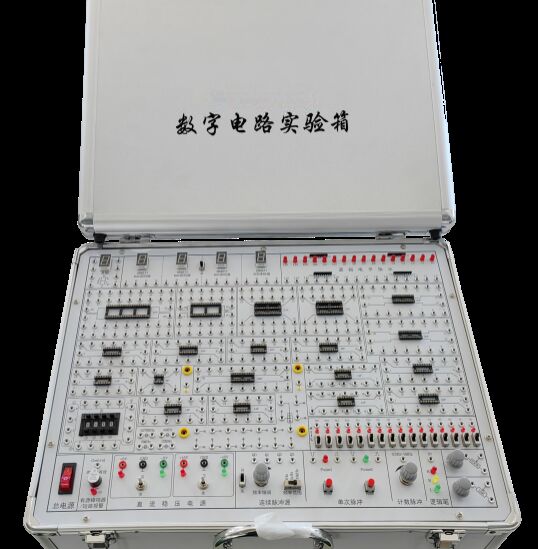

Modular Structure Digital Circuit Experiment Kit with High-strength Aluminum Alloy Protective Box for TVET University Educational laboratory Training kit

This equipment adopts a modular structure, with each module operating independently. Various experimental circuits can be constructed by combining different components in each component area. The experimental template has a circuit diagram printed on the front and the components mounted on the back. Test holes are provided at all test points in each experimental circuit, ensuring ease of use, reliable contact, long lifespan, and high efficiency. The main experimental units are completed using matching experimental modules, and expansion modules can be selected to complete related experiments according to different needs, meeting the needs of experimental teaching in digital circuit courses. It is suitable for experimental teaching of undergraduate, junior college, and vocational school students in courses such as "Digital Electronics Technology" and "Pulse Circuits," and is also one of the basic tools for product development and scientific research. This product was designed with experimental needs in mind and incorporates the advantages of similar products. It features a well-designed, stable, and reliable performance, offering flexible and convenient experiments that help cultivate students' hands-on skills, making it an ideal teaching device.

The experimental projects listed in this guide are as follows:

1. Transistor Switch Characteristics, Limiters, and Clamps
2. Logic Function and Parameter Testing of TTL Integrated Logic Gates
3. Logic Function and Parameter Testing of CMOS Integrated Logic Gates
4. Connection and Driving of Integrated Logic Circuits
5. Design and Testing of Combination Logic Circuits
6. Decoders and Their Applications
7. Data Selectors and Their Applications
8. Flip-Flops and Their Applications
9. Counters and Their Applications
10. Shift Registers and Their Applications
11. Pulse Distributors and Their Applications
12. Generating Pulse Signals Using Gate Circuits—Self-Excited Multivibrator
13. Monostable Multivibrator and Schmitt Trigger—Pulse Delay and Waveform Shaping Circuits
14. 555 Timer Circuit and Its Applications
15. D/A and A/D Converters
