Name: Electric Drive Training Equipment with Dual Leakage Protection and Modular Design for Motor Control Wiring and Electrical Safety Training
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F065
Availability: InStock

Home > Products > Electrical Training Equipment >

Electric Drive Training Equipment with Dual Leakage Protection and Modular Design for Motor Control Wiring and Electrical Safety Training

Place of Origin:

Henan,China

Brand Name:

RUIMU

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

RM-F065

Chat Now

Request A Quote

Product Details

Model Number:

RM-F065

Material:

Metal

Electric Powered:

Yes

Printing:

Uv Printing

Place Of Origin:

Henan, China

Size:

1600mm*800mm*1800mm

Application:

Training Institute

Function:

Teaching Purpose

Product Name:

School Teaching Equipment

Warranty:

1 Year

OEM&ODM:

Surpport

Color:

White-Blue

MOQ:

1 Unit

Payment & Shipping Terms

Minimum Order Quantity

Price

Packaging Details

Wooden Packing

Delivery Time

30~45

Payment Terms

T/T

Supply Ability

5 Unit/30Days

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Electric Drive Training Equipment Motor Control Wiring Electrical Safety Training Simulator

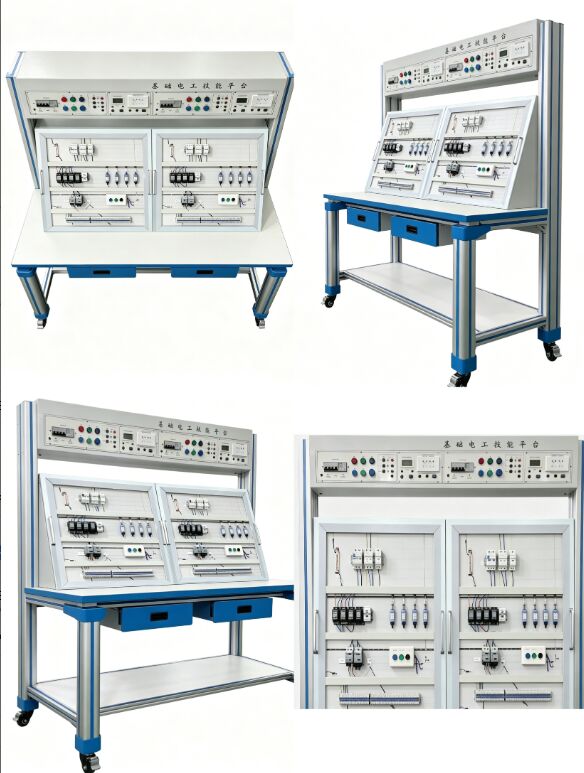

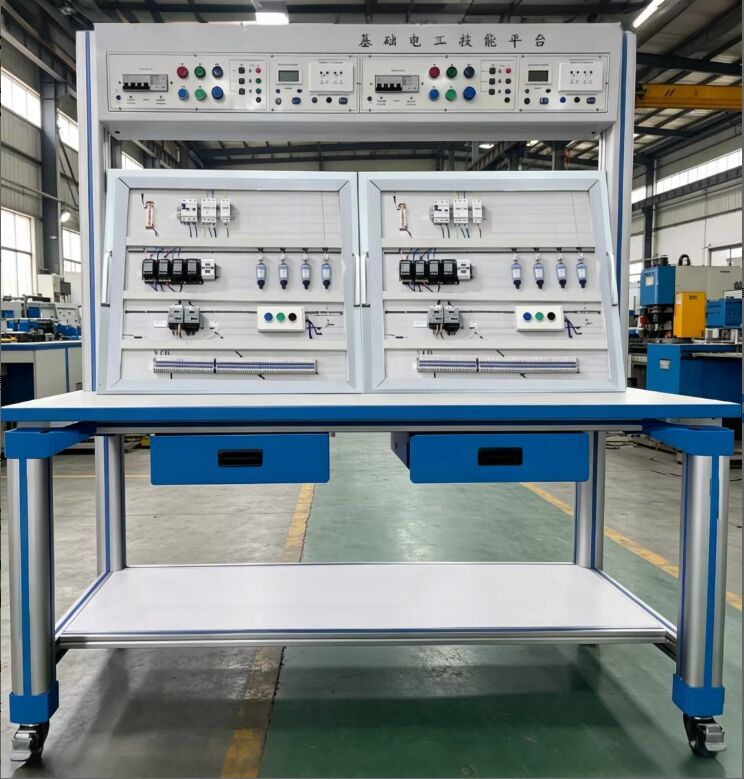

The RM-F065 electric drive training platform is designed to meet the teaching and practical training requirements of colleges and universities, complying with the training syllabus of courses such as Electrical Engineering and Circuit and Electronic Technology. It integrates a training table, mesh board, power control components and teaching resources, enabling students to independently complete electrical component installation, wiring, operation and fault troubleshooting in a simulated industrial environment.

This comprehensive system supports training on motor control, electrical lighting, electrical safety and electrical engineering skills, and can also be used for electrician qualification assessment and skill competitions.

Project Design Advantages

Hanging mesh board structure supports flexible replacement, addition or reduction of training projects to meet long-term teaching needs
Industrial aluminum profile and sheet metal construction provides high strength, stable structure and attractive appearance with casters for easy movement and fixation
Dual leakage protection (current-type and voltage-type) with emergency stop switch cuts off power when ground leakage current exceeds 30mA, fully meeting national safety standards
Complete power supply system (three-phase 380V, single-phase 220V) with measuring instruments and protection functions for safe and reliable operation
Digital after-sales service management platform and teaching software package enable online after-sales support, interactive training and simulation operations
Modular component design allows easy replacement and maintenance, ensuring faulty parts don't affect normal teaching activities

Technical Specifications

Operating Environment	-10°C to +40°C, Relative Humidity <85% (25°C), Altitude: <4000m
Dimensions	1600mm * 800mm * 1800mm
Input Power	Three-phase, four-wire (or three-phase five-wire), AC 380V ±10%, 50Hz
Equipment Color	White-Blue
Equipment Weight	≤150kg
Operating Current	<1.5KVA

Practical Training Projects

Electrical Engineering and Motor Control Training

Manual unidirectional operation control of an asynchronous motor
Inching control of an asynchronous motor
Self-locking control of an asynchronous motor
Self-locking control with overload protection
Unidirectional inching start control of an asynchronous motor
Dual-location control of an asynchronous motor
Interlocked forward and reverse rotation control of an asynchronous motor
Forward and reverse inching and start control
Double interlocked forward and reverse rotation control
Automatic reciprocating control
Motor delayed start control
Automatic sequential start control

Electrical Engineering and Lighting Practical Training

Single-pole switch control circuit
Touch switch control circuit
Induction switch control circuit
Sound-activated switch control circuit
Single-pole switch series control circuit
Single-pole switch parallel control circuit
Single-pole switch mixed connection control circuit
Incandescent lamp parallel circuit
Incandescent lamp mixed connection circuit
Fluorescent lamp control circuit
Single-phase electricity meter direct installation circuit
Single-phase electricity meter indirect installation circuit
