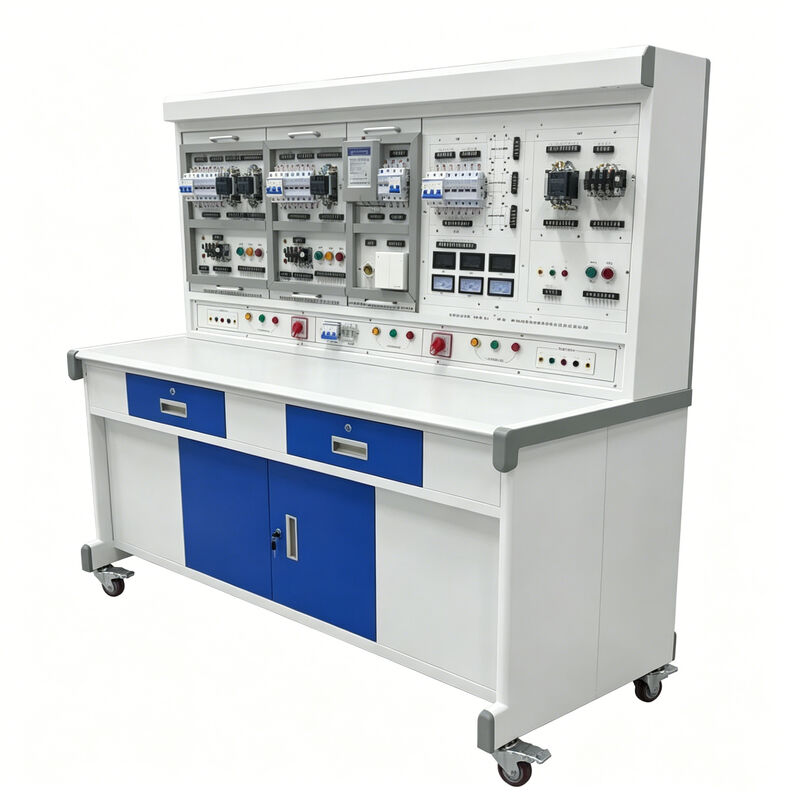

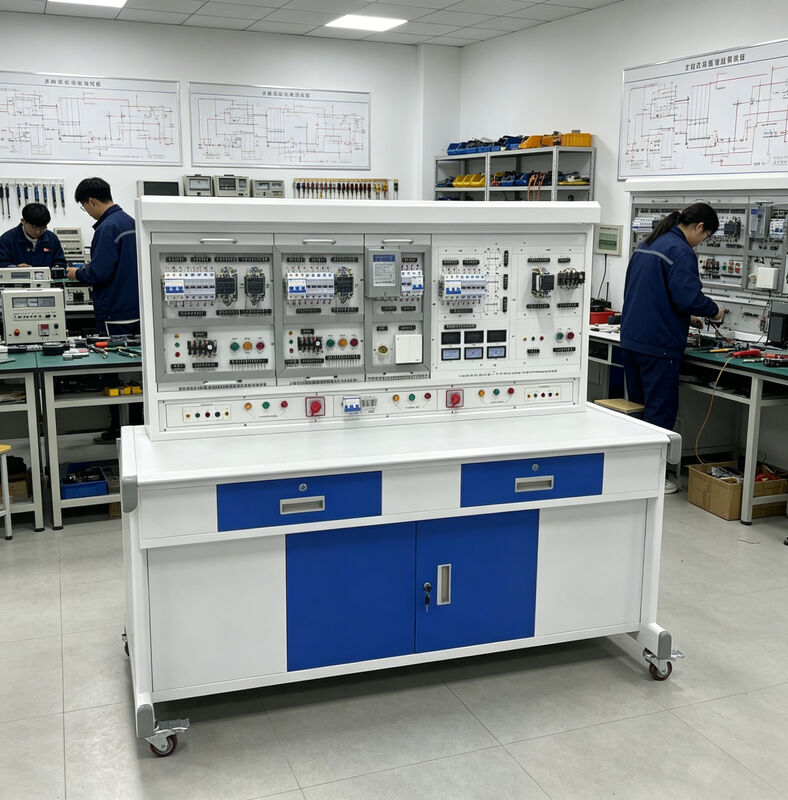

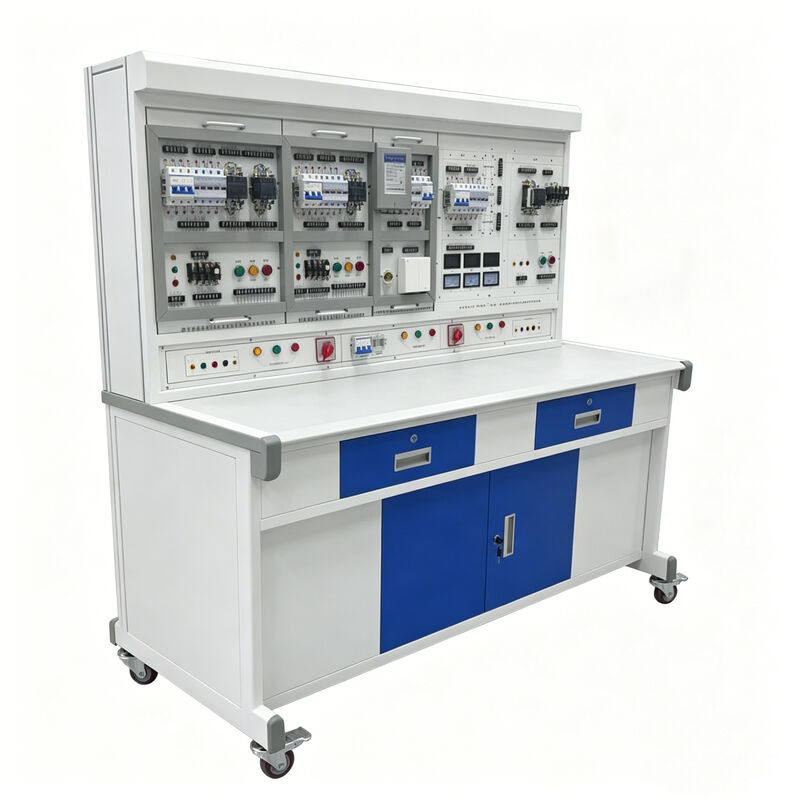

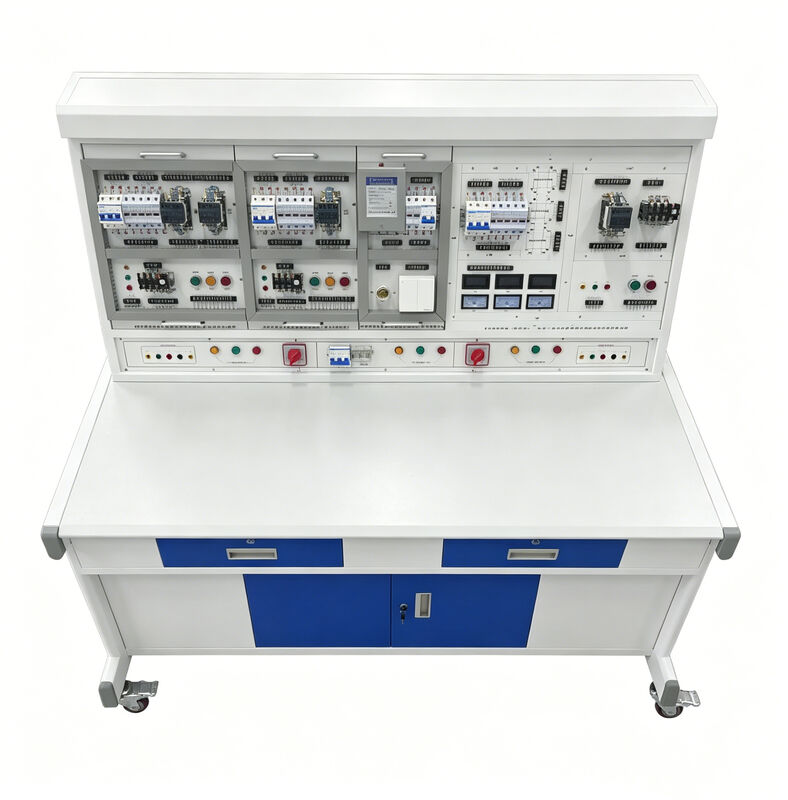

Low-Voltage Electrician Training Station for Laboratory Equipment and Teaching Experiment with 1600*700*1600mm Size

Low-Voltage Electrician Training Station for Laboratory Equipment and Teaching Experiment with 16007001600mm Size

Name: Low-Voltage Electrician Training Station for Laboratory Equipment and Teaching Experiment with 1600*700*1600mm Size
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F001
Availability: InStock

Place of Origin:

Henan，China

Brand Name:

RUIMU

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

RM-F001

Chat Now

Request A Quote

Product Details

Material:

Metal

Electric Powered:

Printing:

Uv Printing

Place Of Origin:

Henan, China

Size:

1600*700*1600mm

Model Number:

RM-F001

Function:

Laboratory Equipment

Usage:

Teaching Experiment Equipment

Warranty:

1 Year

Packaging:

Wooden Packaging

Color:

White & Blue

MOQ:

1 Unit

Weight:

≤200kg

OEM&ODM:

Support

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden packing

Delivery Time

30~45days

Payment Terms

T/T

Supply Ability

5unit/30days

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Low-Voltage Electrician Training Station for Electrical Skills Certification

This comprehensive training device is engineered according to the Low-Voltage Electrician Work Safety Technical Practical Operation Examination Standards issued by the Ministry of Emergency Management. It encompasses electrical control circuits and lighting circuits, providing hands-on operational experience that enables students to master the practical techniques and skills required for certification exams.

Designed to be targeted, practical, scientific, and advanced, this training station serves as an ideal tool for elementary and secondary electrician skills assessments at labor and vocational skill certification departments, universities, colleges, vocational schools, and technical schools.

Equipment Components and Features

Power Supply and Instrument Control Panel

Double-layer, matte, fine-grained, spray-coated iron structure with aluminum panel
Three-phase four-wire power input with leakage protection
Main switch operation via contactor through start/stop buttons
Transformer providing 24V AC voltage output
Single-phase 220V power socket on control panel side

Experimental Table

Double-layer iron matte dense spray-coated structure
Fireproof, waterproof, wear-resistant high-density board desktop
Solid construction with attractive appearance
Two lockable drawers on left and right sides

Training Hanging Box

Equipped with domestic well-known brand components: fuses, button switches, AC contactors, time relays, push button switches, signal indicators, and thermal relays
Component wiring on terminal blocks to prevent loss from screw disassembly
Wiring trough for process wiring training
Safe connection via safety socket and high-reliability sheathed pistol plug cable

Training Box Configuration

Module Code	Training Module
K21	Motor One-Way Continuous Operation Wiring Module (with Inching Control)
K22	Three-Phase Asynchronous Motor Forward and Reverse Operation Wiring and Safety Operation Module
K23	Single-Phase Energy Meter with Light Installation and Wiring Module
K24	Motor Operation Control Circuit Wiring Module with Fuses (Circuit Breakers), Meters, and Current Transformers
K25	Wire Connections
-	Three-Phase Squirrel Cage Asynchronous Motor

Technical Parameters

Parameter	Specification
Input Voltage	Three-Phase Four-Wire (or Three-Phase Five-Wire), 380V ±10%, 50Hz
Operating Environment	Temperature: -10°C to +40°C, Relative Humidity: <85% (at 25°C)
Dimensions	1600 × 700 × 1600 mm
Device Capacity	<1.5 KVA
