Name: Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F104
Price: 51.00 USD
Availability: InStock

Home > Products > Electrical Training Equipment >

Modular Electrical Transformer Training Kit with Comprehensive Safety Protection for Hands-on Vocational Training

Modular Design Electrical Transformer Training Kit

Comprehensive Safety Protection Transformer Training Bench

Hands-on Training Electrical Trainer Kit

Place of Origin:

Henan, China

Brand Name:

RUIMU

Model Number:

RM-F104

Chat Now

Request A Quote

Product Details

Material:

Metal

Electric Powered:

Yes

Weight:

≤150 Kg

Working Temperature:

-10℃～+40℃

Relative Humidity:

<85% (25℃)

Altitude:

<4000m

Power Supply:

AC 3*220V±10%, 50Hz

Power Consumption:

≤1kVA

Dimensions:

1230 * 750 * 1750 Mm

Color:

White Outer Frame, Fine White Wrinkles On The Panel

Transformer Type:

Single-phase And Three-phase

Training Projects:

Safety Protection:

Comprehensive

Design:

Modular

Equipment Weight:

≤150 Kg

Highlight:

Modular Design Electrical Transformer Training Kit

Comprehensive Safety Protection Transformer Training Bench

Hands-on Training Electrical Trainer Kit

Payment & Shipping Terms

Minimum Order Quantity

Price

R 72 170,95-74 157,30

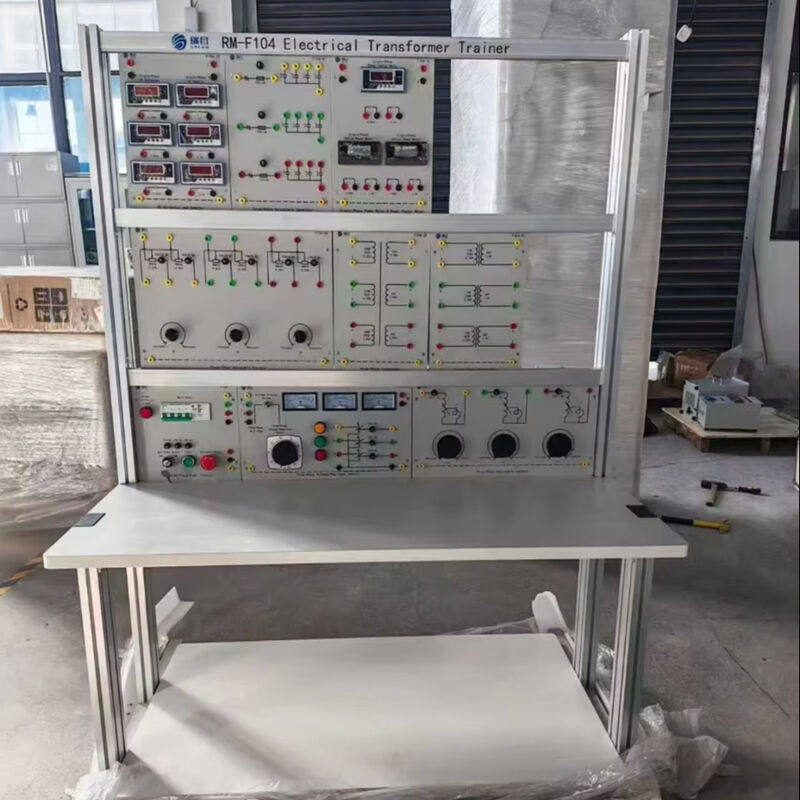

RM-F104 Electrical Transformer Trainer

The RM-F104 electrical transformer trainer is a teaching and training device specifically designed for vocational schools'
electrical engineering majors and power company employee skills training . It can complete various training projects including transformer structure recognition, turns ratio testing, no-load testing, load testing, and short-circuit testing. This equipment adopts a modular design, has comprehensive safety protection, and is easy to operate, providing a clear demonstration of the transformer's working principles and operating characteristics. This training platform aims to meet the needs of power transformer operation training, covering single-phase and three-phase characteristics, parameter measurement, and other training methods.

Experimental Projects

1. Measuring the transformation ratio and parameters of single-phase transformer through no-load and short-circuit tests.
2. Drawing the t-type equivalent circuit diagram based on the parameters measured from no-load and short-circuit tests.
3.Measuring the operating characteristics of single-phase transformer through resistive/inductive/capacitive load tests.
4. Parallel operation of single-phase transformers (polarity identification, parallel connection of two transformers).
5. Identification of high/low voltage windings of three-phase transformer, measurement of primary/secondary polarity.
6. Measuring the transformation ratio and parameters of three-phase transformer through no-load and short-circuit tests.
7. Three-phase transformer Y-Y12 connection mode and its voltage vector diagram.

*If you need more information,please contact us to obtain it.

Product Parameters

Working environment:	Temperature -10℃～+40℃, relative humidity <85% (25℃), altitude <4000m;
Power supply:	AC 3*220V±10%, 50Hz; Power consumption: ≤ 1kVA ;
External dimensions:	1230 * 750 * 1750 mm;
Equipment color:	White outer frame, fine white wrinkles on the panel;
Equipment weight:	≤ 150 kg;

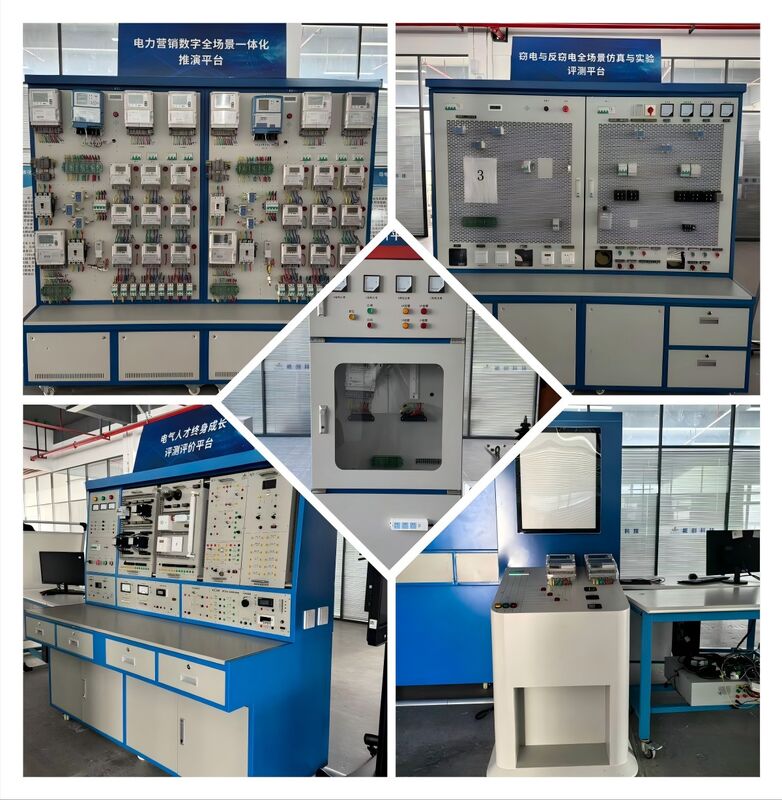

Company Profile

Henan Ruimu Intelligent Technology Co., Ltd.

Henan Ruimu Intelligent Technology Co., Ltd. was established in 2018 and is located in Zhengzhou, Henan Province, China. We are a national high-tech enterprise specializing in the research, development, production, and sales of educational training equipment and power electronics teaching instruments.
Our products cover training equipment for electrical engineering, PLC technology, pneumatic and hydraulic transmission,
automotive, and electrical and electronics. We serve a wide range of applications in university laboratories, vocational training institutions, and scientific research projects, meeting the application needs of customers in various teaching scenarios.
We have an independent R&D and design team and hold over 40 valid intellectual property rights. We can customize comprehensive, integrated solutions including equipment configuration, technical support, and teaching adaptation to meet the needs of global customers. We have established long-term and in-depth partnerships with China State Grid Corporation (SGCC), China Southern Power Grid Co., Ltd. (CSG), and numerous universities, continuously delivering high-quality solutions for high-end technical education. We have also been recognized by the Chinese government as a national high-tech enterprise. Furthermore, we have obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.

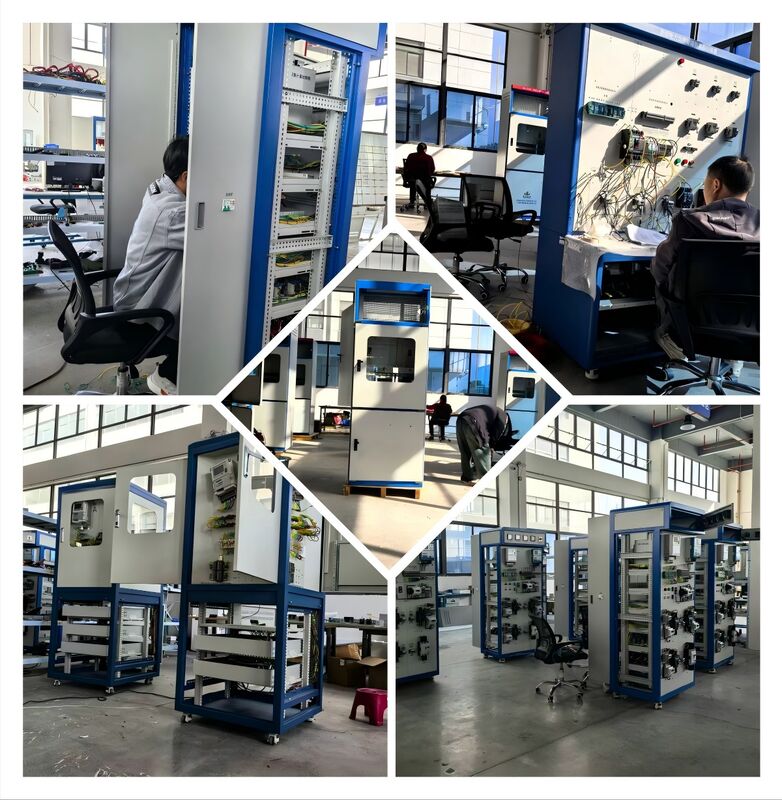

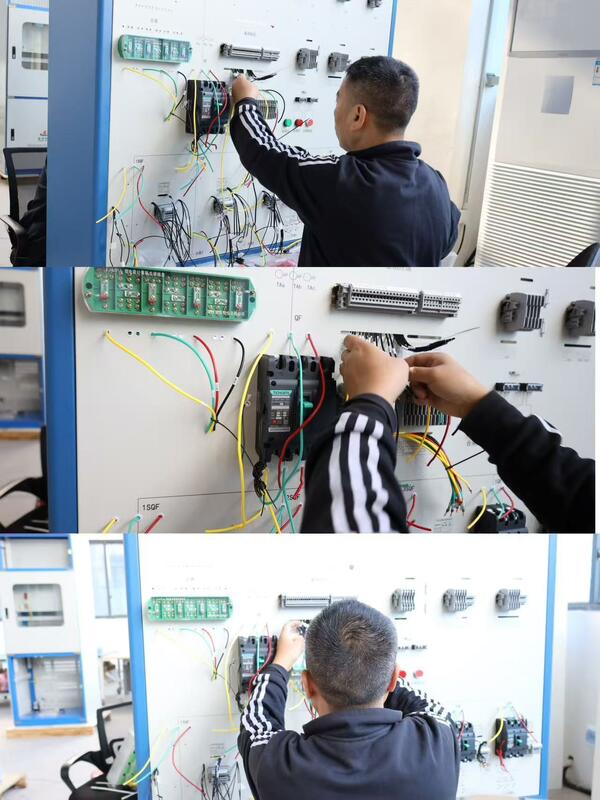

R&D and Production

Packing&Delivery

Certifications

FAQ

Q: What is your quality control process?

A: We enforce a rigorous 4-stage quality inspection system:

Supplier qualification audit;

Full inspection of raw materials;

Real-time production monitoring;

Comprehensive finished product performance testing.

Q: Do you support customized product development?

A: Absolutely! We offer end-to-end customization services from design, prototyping, to mass production.

Q: How long is your delivery time ?

A: Depends on product quantity and the actual demand.Please check with our sales team.

Q: Do you offer aftersales support ?

A: Yes,of course, We will provide technical documentation and install video.The equipment parts are easy to replace and our techincal team can provide online or remote support if customer request.

Q: How to have exclusive sales rights of RUIMU ?

A: Place order to RUIMU, when the order amount reach certain level, RUIMU and customer will negotiate about exclusive rights.Or Send your company profile to RUIMU, after RUIMU evaluation, start from general agents and gradually become exclusive agent.
