Name: Portable Electronics Circuit Principle Experiment Box with Aluminum-Wood Alloy Housing and Flexible Experimental Circuit Configuration
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F088
Price: 458.00 USD
Availability: InStock

Home > Products > Electrical Training Equipment >

Portable Electronics Circuit Principle Experiment Box with Aluminum-Wood Alloy Housing and Flexible Experimental Circuit Configuration

Portable Electronics Circuit Principle Experiment Box

Aluminum-Wood Alloy Housing Electronic Training Kit

Flexible Experimental Circuit Configuration Electrical Training Equipment

Place of Origin:

Henan, China

Brand Name:

RUIMU

Model Number:

RM-F088

Chat Now

Request A Quote

Product Details

Material:

Metal, Metal

Electric Powered:

Yes

Printing:

Uv Printing

Size:

480mm*360mm*120mm

Operating Power Supply:

+5V/2A, ±12V/0.7A, Adjustable 1.5-9V

Pulse Generators:

Two Positive And Negative Single Pulse

Clock Circuit:

1Hz-1kHz Continuously Adjustable

Fixed Pulse Output:

1Hz-1MHz, Seven Channels

Digital Logic Test:

Three-state With Audio And Visual Indicators

Housing Material:

Aluminum-wood Alloy

Power Supply Outputs:

+5V/2A, ±12V/0.7A, Adjustable 1.5-9V

Signal Sources:

Two Pulse Generators, Adjustable Clock

Test Tools:

Three-state Digital Logic Test Circuit

Experimental Circuit Area:

Fully Open, Flexible Configuration

Fixed Pulse Channels:

Seven Channels, 1Hz Indicator

Highlight:

Portable Electronics Circuit Principle Experiment Box

Aluminum-Wood Alloy Housing Electronic Training Kit

Flexible Experimental Circuit Configuration Electrical Training Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

$358-558

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

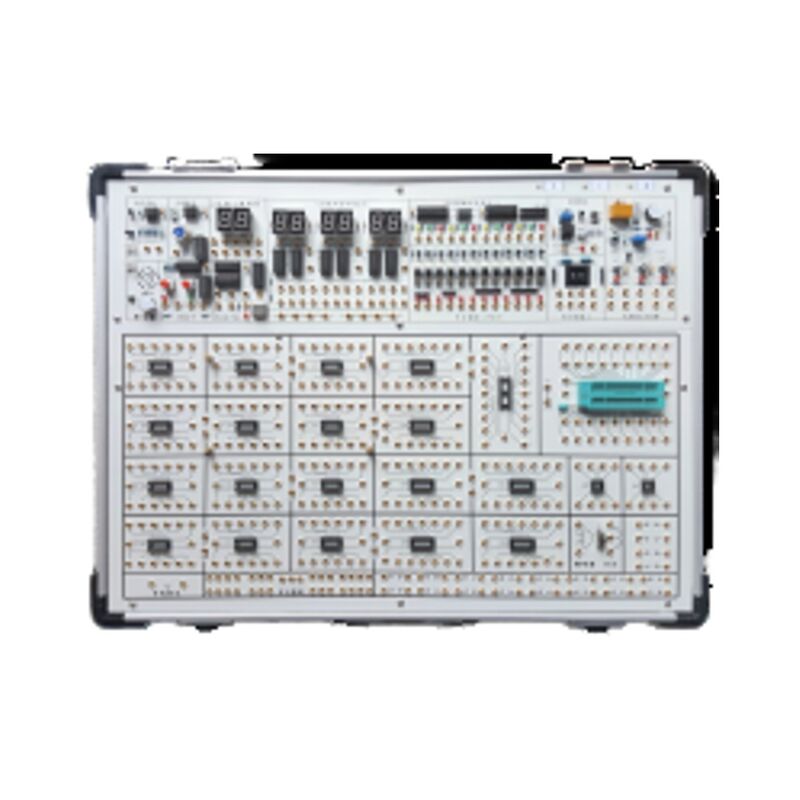

Portable Electronics Circuit Principle Experiment Box F088

Professional educational training equipment for electronics circuit principles and experiments

Product Overview

This portable experiment box features an aluminum-wood alloy housing, switching power supply, common signal sources, and a fully open experimental circuit area. The flexible configuration allows for customized experimental circuits to meet diverse teaching requirements for students at various skill levels.

Training Objectives & Curriculum

Transistor Switching Characteristics, Limiters, and Clamps
Logical Functions and Parameter Testing of TTL Integrated Logic Gates
Logical Functions and Parameter Testing of CMOS Integrated Logic Gates
Connection and Driving of Integrated Logic Circuits
Design and Testing of Combinational Logic Circuits
Decoders and Their Applications
Data Selectors and Their Applications
Flip-Flops and Their Applications
Counters and Their Applications
Shift Registers and Their Applications
Pulse Distributors and Their Applications
Generating Pulse Signals Using Gate Circuits - Self-Excited Multivibrator
Monostable Flip-Flops and Schmitt Triggers - Pulse Delay and Waveform Shaping Circuits
555 Timer Circuits and Their Applications

For detailed technical specifications and additional information, please contact our technical support team.

Technical Specifications

Experimental Circuit Operating Power Supply	One set of +5V/2A, one set of ±12V/0.7A, and one set of adjustable 1.5-9V
Common Signal Sources	Two positive/negative single pulse generators with level indicators; 1Hz-1kHz continuously adjustable clock circuit; 1Hz-1MHz fixed pulse output with seven channels including 1Hz output with indicator light
Test Tools	Three-state digital logic test circuit with audio and visual indicators

Manufacturer Profile

Henan Ruimu Intelligent Technology Co., Ltd. was established in 2018 and is located in Zhengzhou, Henan Province, China. We are a national high-tech enterprise specializing in the research, development, production, and sales of educational training equipment and power electronics teaching instruments.

Product Portfolio

Our comprehensive product range covers training equipment for electrical engineering, PLC technology, pneumatic and hydraulic transmission, automotive systems, and electrical/electronics applications.

Quality Certifications

We maintain ISO9001 quality management system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification.

Industry Partnerships

We have established long-term partnerships with China State Grid Corporation (SGCC), China Southern Power Grid Co., Ltd. (CSG), and numerous educational institutions, delivering high-quality solutions for technical education.

Additional Product Images

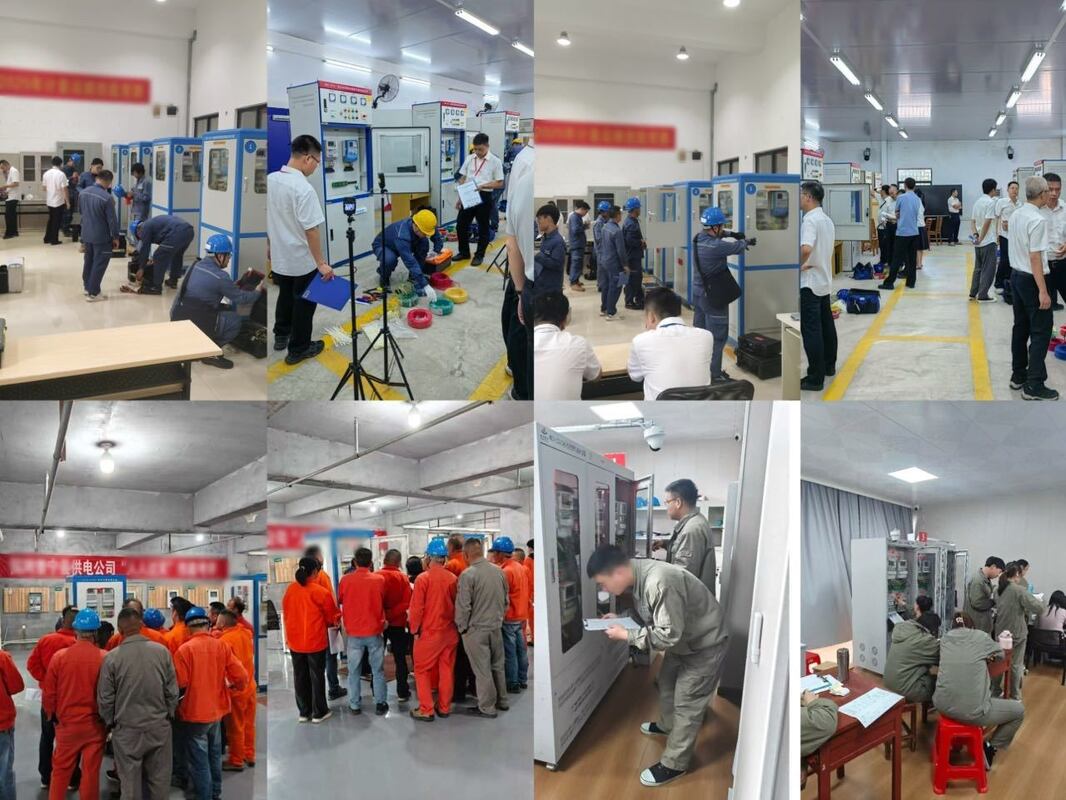

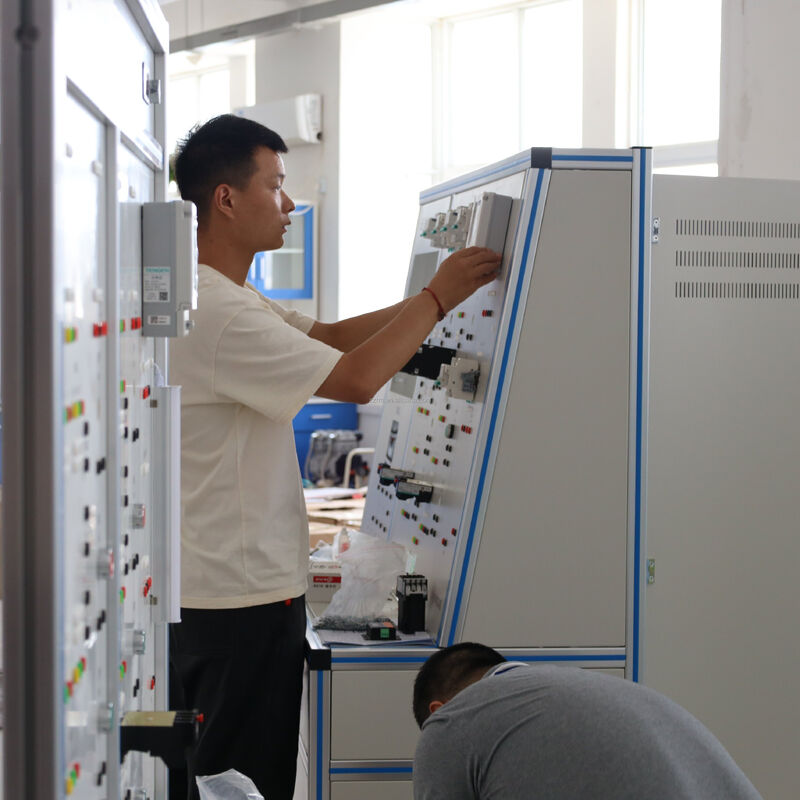

Practical Training Applications

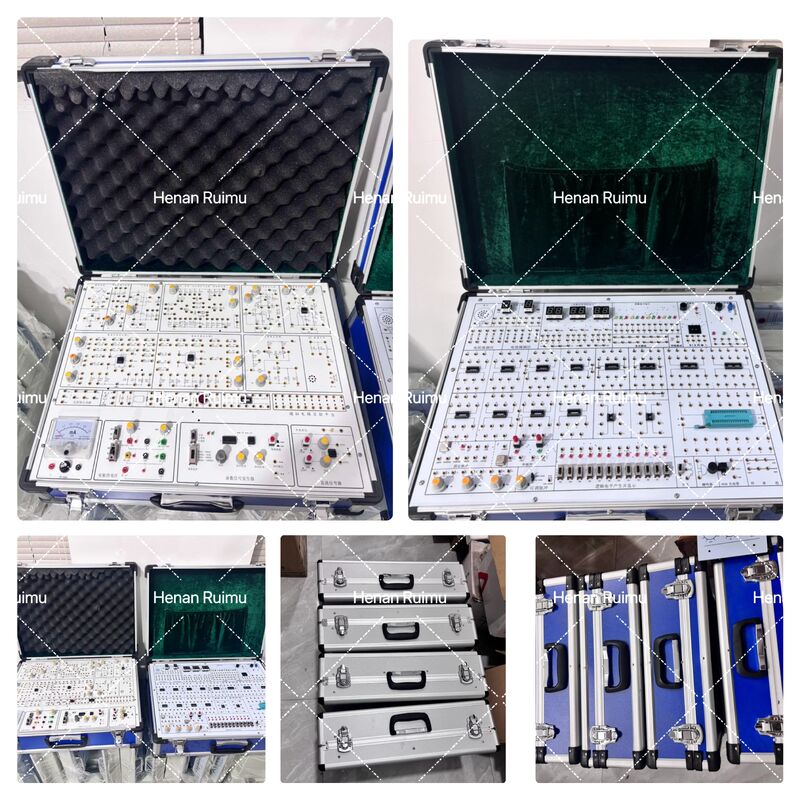

Equipment Display

Quality Certifications

Packaging & Delivery

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the manufacturer and support customized solutions including ODM & OEM services.

How long is your delivery time?

Delivery time depends on product quantity and specific requirements. Please consult with our sales team for accurate timelines.

Do you offer after-sales support?

Yes, we provide comprehensive technical documentation, installation videos, and our technical team offers online or remote support upon customer request.

How to obtain exclusive sales rights for RUIMU products?

Exclusive rights are available when order volumes reach predetermined levels, or through evaluation of your company profile starting from general agency arrangements.
