Modular Electrical Training Equipment with Overload Protection and 1Hz-1MHz Fixed Pulse Output for Power Electronics and Motor Drive Training

Modular Electrical Training Equipment with Overload Protection and 1Hz-1MHz Fixed Pulse Output for Power Electronics and Motor Drive Training

Overload Protection Electrical Training Equipment

Modular Design Power Electronics Trainer

1Hz-1MHz Fixed Pulse Output Motor Drive Training Device

Place of Origin:

CHINA

Brand Name:

RUIMU

Certification:

ISO9001/ISO14001/ISO45001

Model Number:

RM-F009

Chat Now
Request A Quote
Modular Electrical Training Equipment with Overload Protection and 1Hz-1MHz Fixed Pulse Output for Power Electronics and Motor Drive Training
Product Details
Rated Power:
370W,<0.5KW
Safety Plug Cable:
2mm, 60 Pieces
Fixed Pulse Output:
1Hz-1MHz, Seven Channels
Clock Circuit:
1Hz-1kHz Continuously Adjustable
Weight:
8 Kg
Operating Power Supply:
+5V/2A, ±12V/0.7A, Adjustable 1.5-9V
Highlight:

Overload Protection Electrical Training Equipment

,

Modular Design Power Electronics Trainer

,

1Hz-1MHz Fixed Pulse Output Motor Drive Training Device

Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description
Comprehensive Electrical Training Equipment
Product Overview

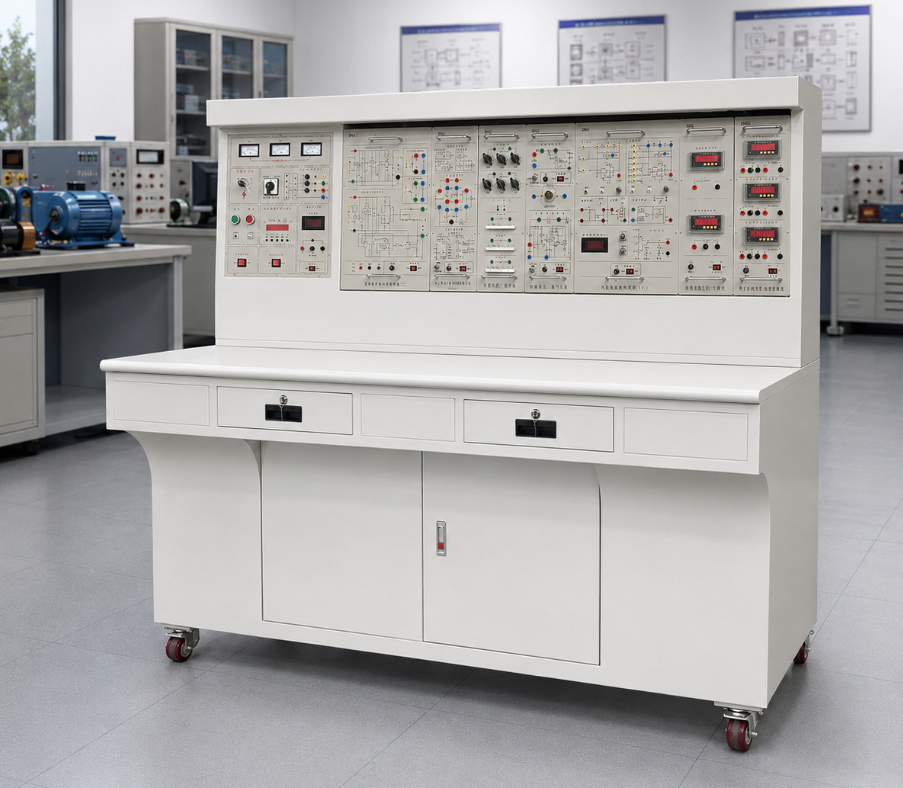

The Power Electronics and Motor Drive Comprehensive Training Device is designed for experimental teaching in mechatronics and automation courses, including Motor Principles and Electric Drive, Power Electronics Technology, and Electric Drive Control Systems. This equipment enables completion of relevant experimental teaching tasks while providing sufficient expansion flexibility for future research requirements.
Key Features
  • Modular Design: Unique structural design combining fixed modules (loads, AC/DC power supplies) with hanging box modules, reducing instructor preparation time while facilitating functional expansion
  • Comprehensive Curriculum: Emphasizes modern power electronics devices and control theory alongside traditional experiments, enabling students to understand component applications and master popular circuits
  • Advanced Safety Protection: Comprehensive personal and equipment safety features including overcurrent protection, high-voltage protection circuits, and segregated experimental leads to prevent circuit damage
  • Specialized Motors: Experimental motors (100-200W range) with parameters and characteristics simulating small and medium-sized industrial motors
Technical Specifications
Unit Capacity <1.5kVA
Power Supply ~3N/380V/50Hz/3A
Dimensions 1800mm * 750mm * 1650mm
Weight <150kg
Experimental Projects
Power Electronics Experiments
Power Electronics Technology (Traditional Rectification)
  1. Single-junction transistor trigger circuit and single-phase half-wave controlled rectifier circuit
  2. Sine wave synchronous phase shift trigger circuit
  3. Sawtooth wave synchronous phase shift trigger circuit
  4. Single-phase bridge half-controlled rectifier circuit
  5. Single-phase bridge full-controlled rectifier circuit
  6. Single-phase bridge active inverter circuit
  7. Three-phase half-wave controlled rectifier circuit research
  8. Thyristor three-phase half-wave active inverter circuit
  9. Three-phase bridge half-controlled rectifier circuit
  10. Three-phase bridge full-controlled rectifier and active inverter circuit
  11. Single-phase AC voltage regulation circuit
  12. Three-phase AC voltage regulation circuit
Motor Drive Experiments
DC Motor Experiments
  • Motor knowledge experiment
  • DC generator experiment
  • Shunt-excited DC motor: Working characteristics, mechanical characteristics, speed regulation characteristics, direct method for determining efficiency
Asynchronous Motor Experiments
  • Three-phase cage-type asynchronous motors: No-load test, short-circuit test, load test
  • Starting and speed regulation of three-phase asynchronous motors
  • Single-phase capacitor-start asynchronous motors: No-load test, short-circuit test, load test
  • Automatic MS curve mapping of asynchronous motors
Motor Mechanical Characteristics
  • Mechanical characteristics of DC separately excited motors under various operating conditions
  • Mechanical characteristics of three-phase asynchronous motors under various operating conditions
  • MS curve mapping of three-phase asynchronous motors
Synchronous Motor Experiments
  • Operating characteristics of three-phase synchronous generators
  • Parallel operation of three-phase synchronous generators: Grid-connected experiment, active and reactive power regulation, V-shaped curve
  • Parallel operation of three-phase synchronous motors: Asynchronous starting, V Curve, working characteristics
  • Determination of three-phase synchronous generator parameters
