Comprehensive Advanced Maintenance Electrician Skills Training & Assessment Bench Didactic Workstation For Vocational Electrical Lab Skill Evaluation

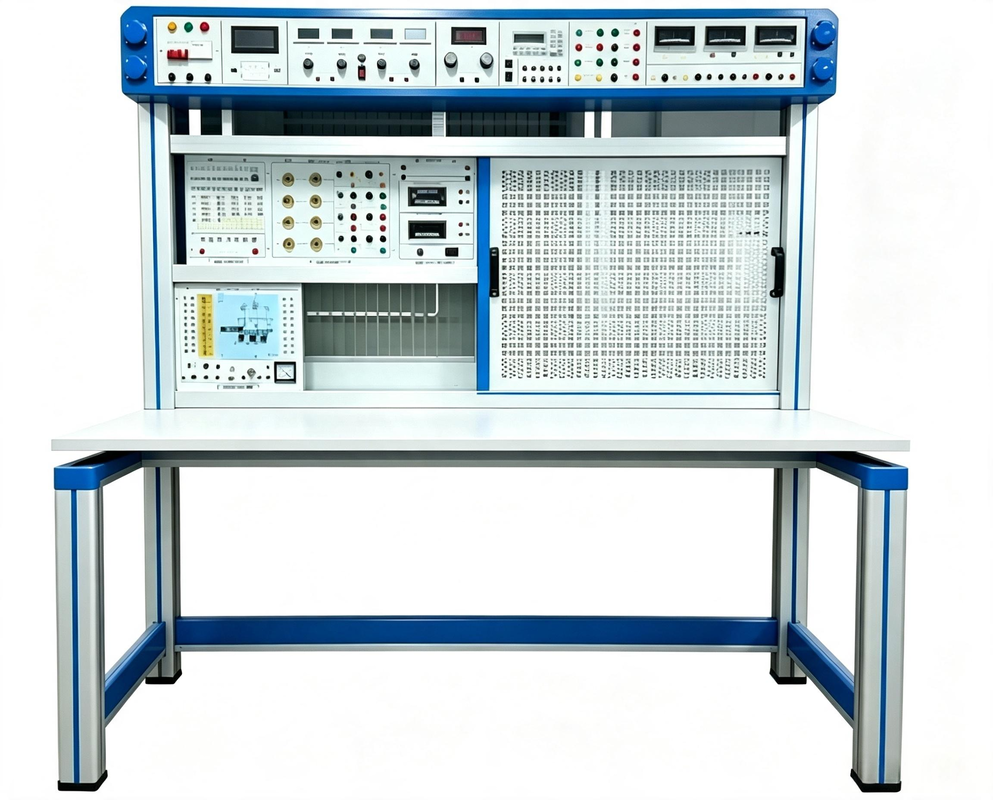

This device mainly consists of a training table, a main unit, an external instrument power supply box, a training hanging box, a perforated board, and training components. Students arrange the components rationally according to the training circuit. Installation and wiring are all completed by the students themselves, closely resembling an industrial field. It enables students to simulate basic electrical and electronic circuits, motor control circuits, and lighting power distribution. It can also provide comprehensive training in PLC programmable circuits, frequency converters, touch screen integrated application circuits, and electronic technology application circuits. Through a series of project-based training, students' hands-on abilities and practical skills are cultivated. The training projects can be determined by the students themselves, and appropriate components are selected based on the chosen projects. This device can also be used as an assessment tool for electricians.

• The training uses a combination of perforated plates and hanging boxes, which makes the training convenient to operate, easy to replace, and easy to expand functions or develop new training projects. It is conducive to hands-on ability and is close to the industrial site.
• Highly comprehensive: It can provide skills training in multiple disciplines, including electrical engineering, electric drive, electrical control, and PLC integrated control.
• The operating console only requires a three-phase four-wire AC power supply to be put into use. It occupies a small area, saves on training room space, reduces infrastructure investment, and has significant economic benefits.
• Equipped with voltage-type and current-type leakage current protectors to ensure operator safety; power output is monitored and short-circuit protected.
• The 380V AC output is equipped with a single-chip microcomputer-controlled overcurrent protection device. If a phase-to-phase or line-to-line direct short circuit or overload current exceeds the set value, the system will cut off the main power supply to ensure the safety of the equipment.

1. Total capacity: <1.5kVA;
2. Input power supply: Three-phase four-wire system ~380V±10% 50Hz
3. Temperature: -5℃～+40℃, relative humidity <85%
4. Device capacity: <1.5KVA
5. External dimensions: 1600mm × 700mm × 1560mm

Basic electrical skills training

1. Use of a low-voltage tester
2. How to operate a fire extinguisher (teacher demonstration)
3. Mastery of mouth-to-mouth resuscitation and chest compressions for first aid.
4. Use and identification of common tools
5. Connection and insulation restoration of commonly used wires
6. Installation of indoor lighting circuits

Selection of electrical instruments

1. Using and reading the selector switch of a multimeter
2. Measurement of AC voltage
3. Measurement of DC voltage and DC current
4. Installation of ammeters and voltmeters
5. Resistance Measurement
6. Soldering iron disassembly, assembly, and soldering skills training
7. Electrical Engineering Drawing Interpretation Training
8. Electrical wiring process
