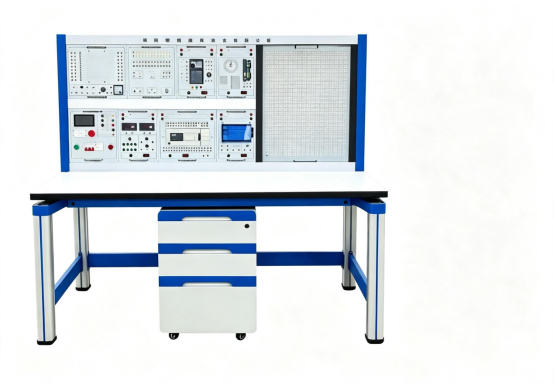

Interactive Learning Electrical Training Equipment with Real Time Feedback and Performance Monitoring Features

This comprehensive training device is designed for teaching and skills development in vocational education programs including Programmable Logic Controller Technology, Electrical and PLC Control Technology, Variable Frequency Speed Regulation Technology, and Fieldbus Control Technology.

Suitable for majors such as electromechanical equipment installation and maintenance, electrical technology application, electronic appliance application and maintenance, and non-mechanical/electrical engineering programs. The equipment also serves PLC practical operation and skills assessment needs at technical schools, vocational colleges, and assessment centers.

The training platform consists of three main components:

• Four industrial aluminum profile columns with adjustable feet
• C-shaped aluminum die-casting component main structure
• Tabletop height: approximately 750mm
• 40×20mm supporting frame with ≥300kg load capacity
• 70×70mm anodized aluminum profile columns with universal mounting system
• Orange-red electrostatic powder coating finish
• 25mm heather gray high-density laminate tabletop with edge sealing
• Four guide wheels for mobility
• Integrated protective baffle with high-strength aluminum alloy and PVC construction

• One-piece cold stamping sheet metal construction with rounded edges
• Electrostatic spray surface finish, total weight ≥31kg
• Rounded cabinet corners: R=30mm, frame thickness ≤2.5mm
• Heavy-duty three-section rails with ≥30kg load capacity
• Snap-fit sheet metal rolled edge drawer handles
• Integrated lock design with four universal casters including brakes

• 30×30×1.2mm square tube legs and pull tubes
• 240×340×25mm particleboard stool surface with wood grain paper
• Stool height: 40cm
• Large flat-head anti-scratch screw and anti-reverse nut fixation
• Pickled, phosphated, and high-pressure electrostatic spray rust prevention treatment
• Gray metal finish with strong adhesion and anti-oxidation properties

• AND, OR, NOT logic function test
• Timer and counter function test
• Jump and branch function training
• Shift register test
• Data processing function training
• Differential and bit operation test
• Three-story elevator control
• Vending machine
• Robotic arm
• Automatic door
• Sky Tower
• Fully automatic washing machine
• Automatic molding machine
• Mail sorting
• Material sorting
• Multi-level transmission
• Eight-segment code display
• Mixing of multiple liquids
• Double-sided milling machine
• Electroplating tank
• AC motor forward and reverse rotation control
• Car movement
• Mixing station
• Car lighting control
• Car spark plug ignition control
• Machining center control
• Escalator
• CA6140 Ordinary Lathe PLC Retrofit Control
• X62W Universal Milling Machine PLC Retrofit Control
• T68 Horizontal Boring Machine PLC Retrofit Control
• M7120 Surface Grinding Machine PLC Retrofit Control
• Z3050 Radial Drilling Machine PLC Retrofit Control
• Electric Hoist PLC Retrofit Control
• Z35 Radial Drilling Machine PLC Retrofit Control
• M1432A Universal Cylindrical Grinding Machine PLC Retrofit Control

• Touchscreen Indicator Light Experiment
• Touchscreen Switch Experiment
• Touchscreen Data Display Experiment
• Touchscreen Data Input Experiment
• Touchscreen Bar Chart Experiment
• Touchscreen Experiment
• Touchscreen Moving Component Experiment
• Touchscreen Abnormal Alarm Experiment
• Touchscreen Static Display Experiment
• Touchscreen Pin Control Experiment
• Three-Phase Asynchronous Motor Y/Δ Start Control Based on Touchscreen PLC Control
• PLC Controlled Motor Jogging and Self-Locking Control
• PLC Controlled Motor Manual Forward and Reverse Rotation Control
• PLC Controlled Motor Forward and Reverse Rotation Control with Delay
• PLC Controlled Motor Star/Delta Start Automatic Control
• Inverter Function Parameter Setting and Operation
• Inverter Alarm and Protection Functions
• External Terminal Jogging Control
• Inverter Controlled Motor Forward and Reverse Rotation
• Multi-Segment Speed Selection Variable Frequency Speed Regulation
• Inverter Stepless Speed Regulation
• Variable Frequency Speed Regulation Based on External Analog Quantity Control
• Temperature PID Control
• Stepper Motor Control
