Solar Photovoltaic Training System with Monocrystalline Silicon Solar Cell, 12V Lead-Acid Battery, and Adjustable Aluminum Alloy Bracket

Solar Photovoltaic Training System with Monocrystalline Silicon Solar Cell, 12V Lead-Acid Battery, and Adjustable Aluminum Alloy Bracket

Monocrystalline Silicon Solar Cell Solar Photovoltaic Training System

12V Lead-Acid Battery Solar Power Teaching Kit

Adjustable Aluminum Alloy Bracket Photovoltaic Educational Equipment

Place of Origin:

China

Brand Name:

RUIMU

Certification:

ISO9001/ISO14001/ISO45001

Model Number:

RUIMU

Chat Now
Request A Quote
Solar Photovoltaic Training System with Monocrystalline Silicon Solar Cell, 12V Lead-Acid Battery, and Adjustable Aluminum Alloy Bracket
Product Details
Maximum System Voltage:
21.5V
System Maximum Current:
2A
System Maximum Power:
25W
Component Dimensions:
621*281*28mm
Optimal Power:
20W
System Dimensions:
1100×780×120mm
Highlight:

Monocrystalline Silicon Solar Cell Solar Photovoltaic Training System

,

12V Lead-Acid Battery Solar Power Teaching Kit

,

Adjustable Aluminum Alloy Bracket Photovoltaic Educational Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description
Electrical Training Equipment Complete Educational Kit for Teaching Electrical Wiring Installation and Safety Procedures

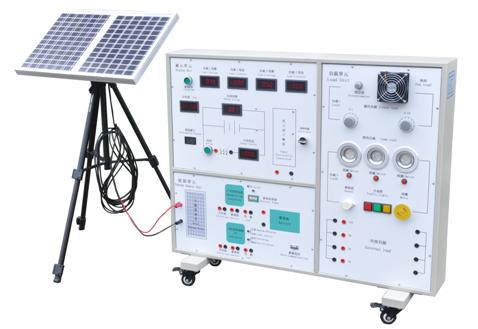

The RM-F174 solar power generation teaching system is a comprehensive educational solution designed for teaching electrical wiring installation and safety procedures through hands-on solar power experiments.
System Configuration
The system consists of solar cell module, battery module, controller module, load regulation and control module, monitoring instrument module, and supporting components.
Technical Specifications
System Specifications
Parameter Specification
Maximum System Voltage 21.5V
System Maximum Current 2A
System Maximum Power 25W
Solar Cell Specifications
Monocrystalline silicon solar cell
Parameter Specification
Component Dimensions (L×W×H) 621×281×28mm
Optimal Power 20W
Optimal Operating Voltage 17.05±0.5V
Optimal Operating Current 1.20±0.10A
Short-circuit Current 1.34±0.10A
Open Circuit Voltage 21.0±0.5V
Solar Controller Specifications
Photoelectric Controller:
  • Rated voltage: 12V
  • Rated current: 10A
  • Equipped with lead-acid battery
  • Load capacity: 12V DC load below 100W
  • Control unit features one channel for light control output and another channel for multiple timer outputs
Household Controller:
  • Rated voltage: 12V
  • Maximum photovoltaic cell power: 60W
  • Maximum load current: 5A
  • Over-discharge voltage: 11.0 ± 0.5V
  • Comprehensive protection features including battery overcharge/over-discharge protection, load overvoltage protection, output short circuit protection, and more
Meter Specifications
  • Ammeters: 3 × 2A, Display mode: 0.5" LCD screen
  • Voltmeters: 3 × 20V, Display mode: 0.5" LCD display
  • Thermometer: 1 × 0～99.9℃
Load Components
  • Fan: 1 unit, 12V, 0.25A, 3W
  • Traffic lights: 2 sets (R, G, B), 12V, 0.25A, 3W
  • LED lights: 1 set (7 LEDs)
  • Buzzer: 1 unit
  • Motor: 1 unit, 12V, 0.25A, 3W
  • Switch: 1 unit
  • Buttons: 1 unit
Battery
Valve-regulated sealed lead-acid battery, rated voltage: 12V, rated capacity (20hr): 3.3Ah, charging method (constant voltage), cycle life: maximum charging current 825mA.
Additional Components
  • Variable resistor: 0～1kΩ range
  • DC/DC: 5 DC/DC power modules
  • DC to AC converter module
Physical Dimensions
System dimensions: 1100×780×120mm, Flat feet: 40×40×500mm, equipped with casters for easy transport to outdoor teaching locations.
Solar Cell Adjustable Aluminum Alloy Bracket
  • Maximum working height: 1695mm
  • Minimum working height: 455mm
  • Load capacity: 8kg
  • Net weight: 1.8kg
  • Maximum pipe diameter: 26mm
  • Constriction height: 620mm
Experimental Content
The solar photovoltaic practical teaching module includes the following comprehensive experiments:
  • Experiment 1: Solar Cell Power Generation Principle Experiment
  • Experiment 1-1: Solar Photovoltaic Panel Energy Conversion Experiment
  • Experiment 1-2: The Influence of Environment on Photoelectric Conversion
  • Experiment 2: Direct Load Experiment of Solar Cell Photovoltaic System
  • Experiment 3: Photovoltaic Controlled Solar Power Generation Experiment
  • Experiment 3-1: Working Principle Experiment of Photoelectric Control Unit
  • Experiment 3-2: Charge and Discharge Protection Experiment of Photoelectric Control Unit
  • Experiment 4: User-based Solar Power Generation and Utilization Experiment
  • Experiment 4-1: Working Principle of User-Type Control Unit
  • Experiment 4-2: User-type control unit charge and discharge protection experiment
  • Experiment 5: Electrical Load Test of Solar System
  • Experiment 6: Comprehensive Experiment
  • Experiment 7: Testing the Basic Characteristics of Solar Cells
  • Experiment 8: External Expansion DC to AC Converter Electrical Appliance Experiment
  • Experiment 9: Single-crystal solar cell I-V characteristic curve experiment
