Modular Hydraulic Assembly and Disassembly Training Device Comprehensive Hydraulic Component Disassembly Practice Bench for Vocational Mechatronics Laboratory Teaching

Product Introduction

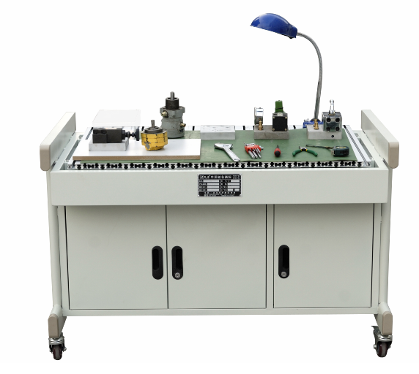

This device features an open-type operating panel for practical disassembly and assembly of various actuators. To reduce noise caused by impact during disassembly and assembly, an anti-static leather mat is placed on the surface. A small component box is also provided to prevent parts from being lost. To ensure that disassembly and assembly do not damage the surface, a disassembly and assembly pad is provided. The training platform is equipped with various hydraulic components, including hydraulic pumps, hydraulic control valves, and hydraulic cylinders, as well as related tools. Through hands-on disassembly and assembly of hydraulic components, students can observe and understand the functions of various components within the hydraulic system, deepen their understanding of the structure and operating principles of hydraulic components, and develop a certain understanding of their processing and assembly techniques. This device is highly practical and suitable for practical training in courses such as "Hydraulic Transmission" and "Hydraulic and Pneumatic Transmission" in electromechanical majors at vocational colleges.

Main technical parameters

1. AC Power Supply: Single-phase AC 2200 V ± 10% 50 Hz;
2. Temperature: -10°C to 50°C; Humidity: ≤ 90% (no condensation);
3. Dimensions: L * W * H = 1230 mm * 700 mm * 820 mm;
4. Power Consumption: ≤ 1.0 kVA;
5. Safety Measures: The training bench's top is constructed of high-density fiberboard with high insulation, strength, and high temperature resistance. It features grounding and leakage protection, and its safety complies with relevant national standards. It uses high-insulation safety sockets and high-strength safety test leads with insulating sheaths.

Product features

• Suitable for disassembly and assembly testing of industrial hydraulic components.
• To reduce noise caused by impact during disassembly and assembly, an anti-static leather mat is installed on the top.
• A small component box is also provided on the top to prevent parts from being lost.
• A disassembly pad is included to prevent damage to the top during assembly and disassembly.
• Equipped with a drawer, a machine tool lamp, and an AC power outlet.
• The training screen features a metal frame with a double-layer matte, densely grained plastic spray finish.

Practical Training Items

1. Oil Pump Disassembly and Assembly Experiment
2. Hydraulic Cylinder Disassembly and Assembly Experiment
3. Directional Valve Disassembly and Assembly Experiment
4. Pressure Valve Disassembly and Assembly Experiment
5. Flow Valve Disassembly and Assembly Experiment
