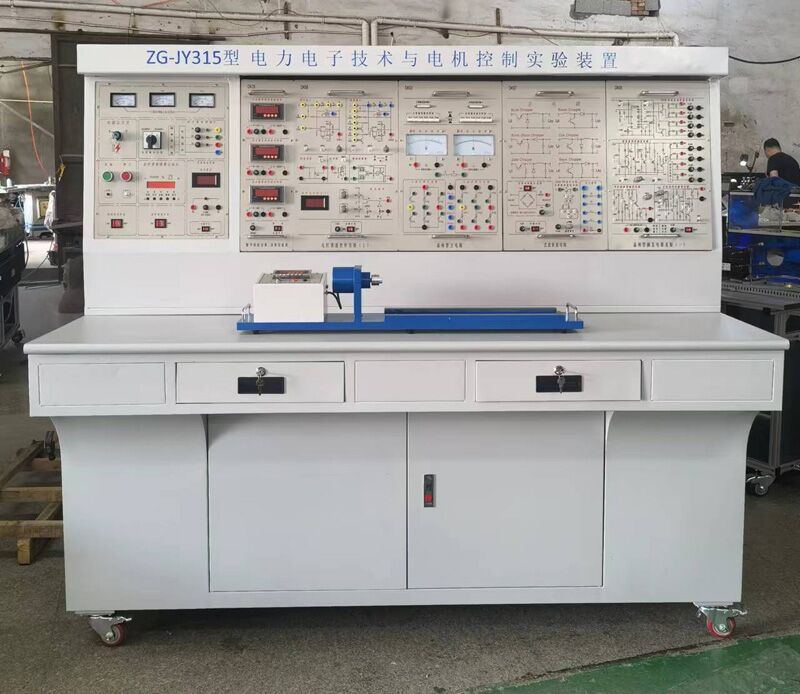

Overload Protection Safety Power Electronics Trainer Equipment Circuit Analysis Training Modules

Overload Protection Safety Power Electronics Trainer Equipment Circuit Analysis Training Modules

Safety Power Electronics Trainer

Power Electronics Trainer Equipment

Overload Protection Power Electronics Trainer

Place of Origin:

CHINA

Brand Name:

RM

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

RM-F109

Chat Now
Request A Quote
Overload Protection Safety Power Electronics Trainer Equipment Circuit Analysis Training Modules
Product Details
Dimensions:
1565mm*720mm*1650mm
Inputvoltagerange:
110V - 240V
Modelnumber:
RM-F108
Safetyfeatures:
Overload Protection, Insulated Components, Emergency Stop Button
Productname:
Power Electronics Training Equipment
Trainingmodules:
Circuit Analysis, Wiring, Motor Control, PLC Programming
Warrantyperiod:
12 Months
Operatingtemperature:
0°C To 40°C
Powersupply:
220V AC, 50Hz
Material:
High-quality Metal Components
Highlight:

Safety Power Electronics Trainer

,

Power Electronics Trainer Equipment

,

Overload Protection Power Electronics Trainer

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden packing
Delivery Time
30-45 work days
Payment Terms
T/T,Western Union
Supply Ability
1/30 days
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description
Electronics Technology Comprehensive Experimental Platform Automation Teaching Equipment Electrical Training Solution
Product Overview
The comprehensive experimental platform for power electronics technology is designed for experimental teaching in electromechanical and automation programs. It supports courses including principles of motors and electric drives, power electronics technology, and electrical drive control systems, providing comprehensive experimental capabilities with expansion potential for advanced research applications.
Key Features
  • Unique structural design combining fixed modules (load, AC/DC power supply, and heavy modules) with hanging-box modules, reducing teacher preparation time while enabling functional expansion
  • Comprehensive coverage of traditional experiments with emphasis on modern power electronic devices and control theories, organized into device research, circuit research, and system research components
  • Advanced safety protection systems including AC power output overcurrent protection, high-voltage protection circuits at trigger pulse observation ports, and safety protection circuits for power devices
Technical Specifications
Total Capacity <1.5kVA
Operating Power Supply ~3N/380V/50Hz/3A
Dimensions 1565mm * 720mm * 1650mm
Weight <150kg
Tags：

power electronics trainer

digital breadboard trainer kit

power electronics training kit
