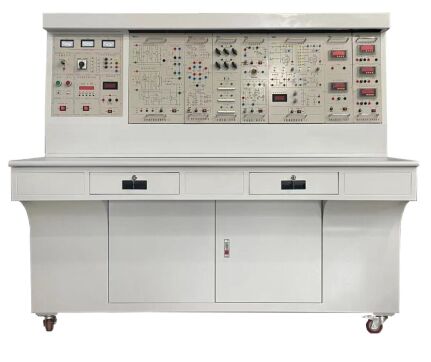

Safety Power Electronics Trainer Kit / Automation Training Kit For Technical Training Centers

Safety Power Electronics Trainer Kit / Automation Training Kit For Technical Training Centers

Safety automation training kit

Technical Centers Power Electronics Trainer Kit

industrial skill power electronics trainer

Place of Origin:

HENAN,CHINA

Brand Name:

Ruimu

Certification:

ISO9001/ISO45001/ISO14001

Model Number:

RM-F009

Chat Now
Request A Quote
Safety Power Electronics Trainer Kit / Automation Training Kit For Technical Training Centers
Product Details
Controlmethod:
PWM (Pulse Width Modulation)
Productname:
Power Electronics Trainer Kit
Inputvoltage:
220V AC
Protectionfeatures:
Overcurrent, Overvoltage, Short Circuit Protection
Material:
Aluminum Alloy Casing
Applications:
Power Electronics Education, Circuit Testing, And Prototyping
Dimensions:
1800mm*750mm*1650mm
Highlight:

Safety automation training kit

,

Technical Centers Power Electronics Trainer Kit

,

industrial skill power electronics trainer

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Wooden packaging
Delivery Time
30-60days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description

Electrical Training Equipment ideal for educational institutions technical training centers and industrial skill development programs

Electrical Training Equipment
Ideal for educational institutions, technical training centers, and industrial skill development programs
Product Overview
The Power Electronics and Motor Drive Comprehensive Training Device is designed for experimental teaching in mechatronics and automation courses including Motor Principles and Electric Drive, Power Electronics Technology, and Electric Drive Control Systems. This equipment enables completion of relevant experimental teaching tasks while providing sufficient expansion flexibility for future research requirements.
Technical Specifications
  • Unit Capacity: <1.5kVA
  • Power Supply: ~3N/380V/50Hz/3A
  • Dimensions: 1800mm × 750mm × 1650mm
  • Weight: <150kg
Available Experimental Projects
  1. Single-junction transistor trigger circuit and single-phase half-wave controlled rectifier circuit experiment
  2. Sine wave synchronous phase shift trigger circuit experiment
  3. Sawtooth wave synchronous phase shift trigger circuit experiment
  4. Single-phase bridge half-controlled rectifier circuit experiment
  5. Single-phase bridge full-controlled rectifier circuit experiment
  6. Single-phase bridge active inverter circuit experiment
