Solar Photovoltaic Trainer Vocational Solar Energy Generation Didactic Equipment Vocational Training Equipment

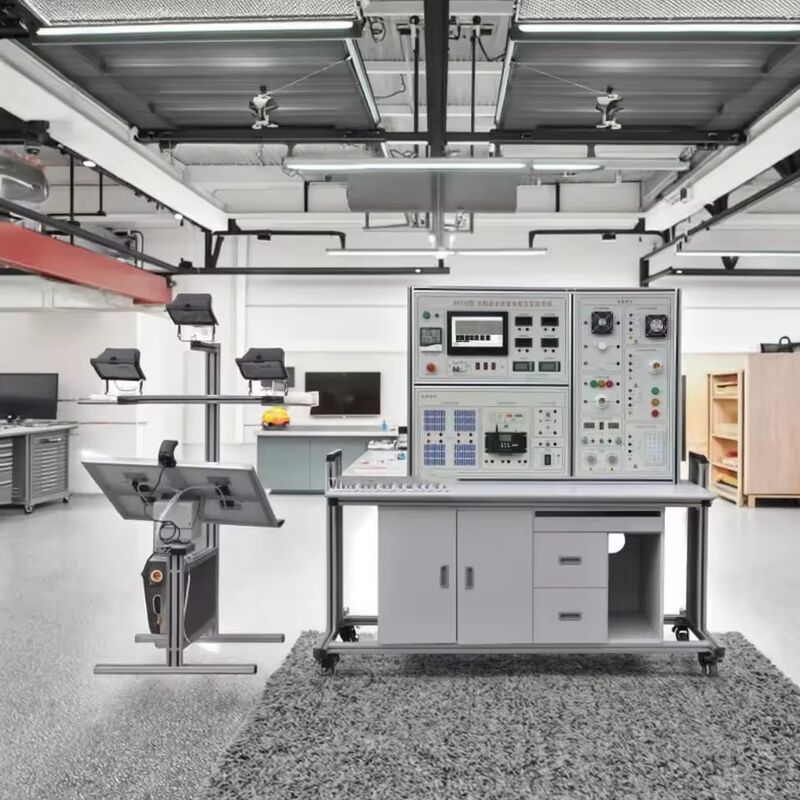

The RM-F082 Solar Photovoltaic Power Generation Comprehensive Training Device is a professional educational system designed for vocational training in solar energy technology and photovoltaic power generation principles.

• Array configuration using four or more 10W solar panels
• Flexible parallel or series connection options
• Parallel connection for high current output
• Series connection for high voltage output

• Two DC voltmeters (0-200V range)
• Two DC ammeters (2A range)
• One AC voltmeter (0-500V range)
• One AC ammeter (5A range)
• Integrated thermometer (-50°C to +70°C range)
• Hygrometer (20% to 90% humidity range)

• Fully automatic overcharge protection
• Over-discharge protection system
• Electronic short circuit protection
• Overload protection circuitry
• Anti-reverse connection protection

• Series PWM charging main circuit
• Reduced voltage loss compared to diode-based circuits
• 3%-6% higher charging efficiency than non-PWM systems
• Extended power consumption time
• Automatic control modes: over-discharge recovery, normal direct charging, and floating charging
• High-precision temperature compensation
• Increased system service life

• Input voltage, current, and power data display with dynamic curves
• Output voltage, current, and power data display with dynamic curves
• Battery voltage data display with dynamic curve monitoring
• Environmental monitoring module integration
• Solar controller with alarm functionality
