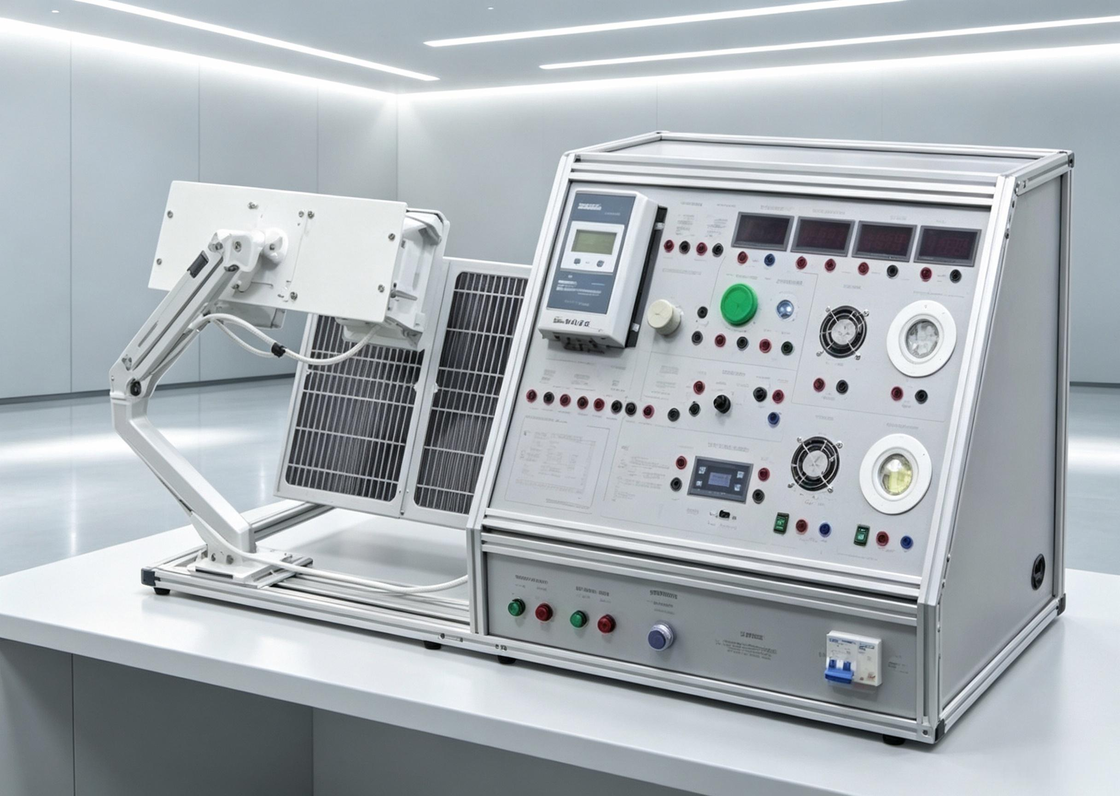

High‑Performance Modular Solar Photovoltaic Power Generation Training Platform Didactic Lab Equipment For Renewable Energy Teaching And Practical Training

Product Introduction

Solar Photovoltaic Power Generation Teaching Experiment Bench - Primarily suitable for research and training on solar power generation for vocational high schools, universities, graduate students, and corporate technicians.

Main technical parameters

2.1. Solar Panels

The solar panels are assembled in an array format, primarily using two (or more) small solar panels. They can be connected in parallel or in series, providing either high current or high voltage solar panel networking options.

• Maximum Output Power: 30W x 2 panels
• Open Circuit Voltage: 21.6V (parallel)
• Short Circuit Current: 2 x 1.66A (parallel)

2.2. Lux Meter

• Range: 0-225Lx, 200-2250Lx, 2000-22500Lx, and 20K-225KLx (225000Lx), with automatic range switching.

2.3. The system includes a voltmeter, ammeter, active power meter, reactive power meter, temperature meter, and hygrometer.

• 1 200V DC voltmeter, 1 5A DC ammeter
• 1 500V AC voltmeter, 1 5A AC ammeter
• 1 power meter
• Temperature and hygrometer: Temperature measurement range: -50°C to +70°C, Humidity measurement range: 20% to 90%

2.4. Environmental Monitoring Module Technical Specifications

• Includes a lux meter, thermometer, hygrometer, and a single-chip clock system for time display.

Solar Controller:

• Displays input voltage, current, and power data and a dynamic curve.
• Displays output voltage, current, and power data and a dynamic curve.
• Battery: Displays voltage data and a dynamic curve.

2.5. Off-grid Inverter:

The off-grid inverter utilizes a DC-AC energy conversion structure. The DC-AC inversion stage primarily generates output current and voltage while achieving unity power factor. The system panel is equipped with multiple test ports for measuring DC and AC related parameters, including voltage and current during DC-AC inversion.

2.6. Gel battery capacity 17Ah, voltage 12V

2.7. Load unit

1. Five groups of DC 12V loads (two groups of inductive loads and two groups of resistive loads)
   1. Inductive loads include: 12V DC fan, 12V buzzer
   2. Resistive loads include: 12V traffic light, 3W LED light
2. Four groups of AC 220V loads (1 group of inductive loads, 2 groups of resistive loads)
   1. Inductive loads include: 220V DC fan
   2. Resistive loads: 220V traffic lights, 220V 3W LED lights,
3. The technical parameters of the adjustable resistor box are as follows:
   1. Resistance range: 10 ohms - 100 ohms
   2. Error range: ±5%

Training Objectives:

• Solar panel open circuit voltage test
• Solar panel short circuit current check
• Solar panel performance test IV
• Solar panel maximum output power test
• Solar panel transmission efficiency test
• Photovoltaic solar panel characteristic test
• Load power supply test
• Battery charging test
• Test solar panel output voltage at different heights/angles/intensities
• DC resistance and inductive load test
• AC resistance and inductive load test
• Comprehensive load test
