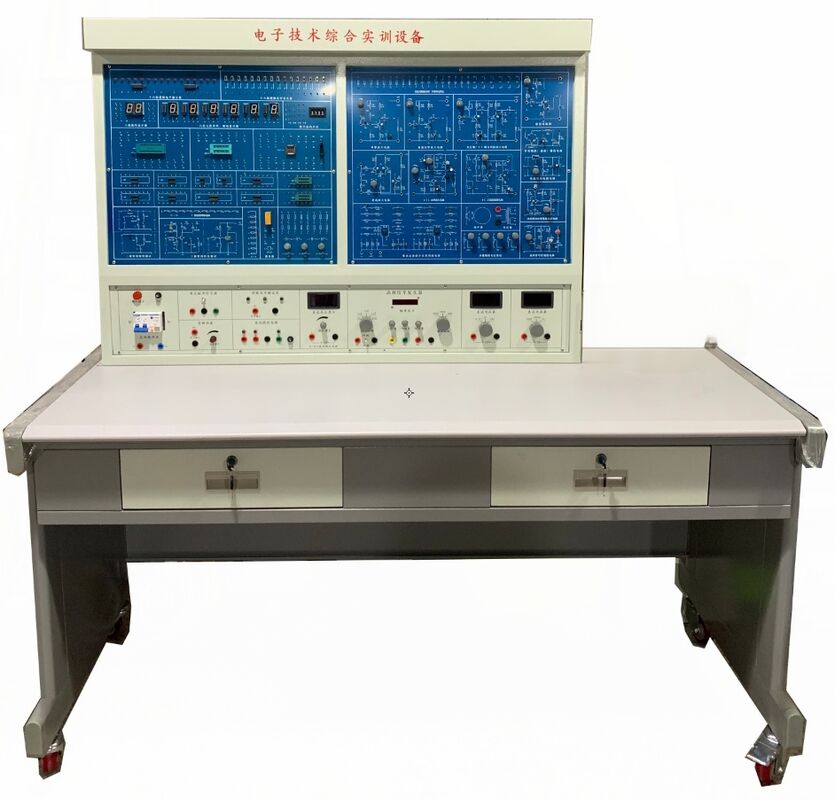

Ruimu Power Electronics Trainer Kit Essential Tool For Developing Practical Skills

Ruimu Power Electronics Trainer Kit Essential Tool For Developing Practical Skills

ISO9001 Power Electronics Trainer Kit

Ruimu power electronics trainer

Practical Skills electrical training equipment

Place of Origin:

HENAN,CHINA

Brand Name:

Ruimu

Certification:

ISO9001/ISO45001/ISO14001

Model Number:

RM-F120

Chat Now
Request A Quote
Product Details
Productname:
Power Electronics Trainer Kit
Material:
Aluminum Alloy Enclosure
Protectionfeatures:
Overvoltage, Overcurrent, Short Circuit
Coolingmethod:
Forced Air Cooling With Fan
Dimensions:
400mm X 300mm X 150mm
Operatingtemperaturerange:
-10°C To 50°C
Controlmethod:
PWM (Pulse Width Modulation)
Applications:
Power Electronics Education, Training, And Experimentation
Maxoutputcurrent:
10A
Highlight:

ISO9001 Power Electronics Trainer Kit

,

Ruimu power electronics trainer

,

Practical Skills electrical training equipment

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Wooden packaging
Delivery Time
30-60days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Product Description

Power Electronics Trainer Kit essential tool for developing practical skills in power electronics and electrical power systems



Ø Product Introduction

This platform is a new generation of experimental device developed by our company based on the requirements of the current teaching and experimental syllabus of "Analog Electronics Technology" and "Digital Electronics Technology" in China, as well as the needs and suggestions of various colleges and universities for this teaching and experimental equipment.

Ø Technical Specifications

1. Input power: Single-phase three-wire 220V±10% 50Hz

2. Working environment: Temperature -10 to +40 , relative humidity <85% (at 25 ), altitude <4000m

3. Device capacity: <200VA

4. External dimensions : 1600mm * 700mm * 1630mm

Ø Practical Training Projects

(I) Basic Skills Training Requirements for Analog Circuits

1. Usage of common electronic instruments and testing methods for their basic performance indicators

2. Identification and testing of crystal diodes and transistors

3. Unidirectional conductivity of PN junctions

4. Common-emitter single-tube amplifier

5. Field-effect transistor amplifier circuit

6. Voltage and current series and parallel negative feedback amplifier circuit

7. Differential amplifier circuit

8. Emitter Follower

9. Common-collector amplifier

10. Common-base amplifier
