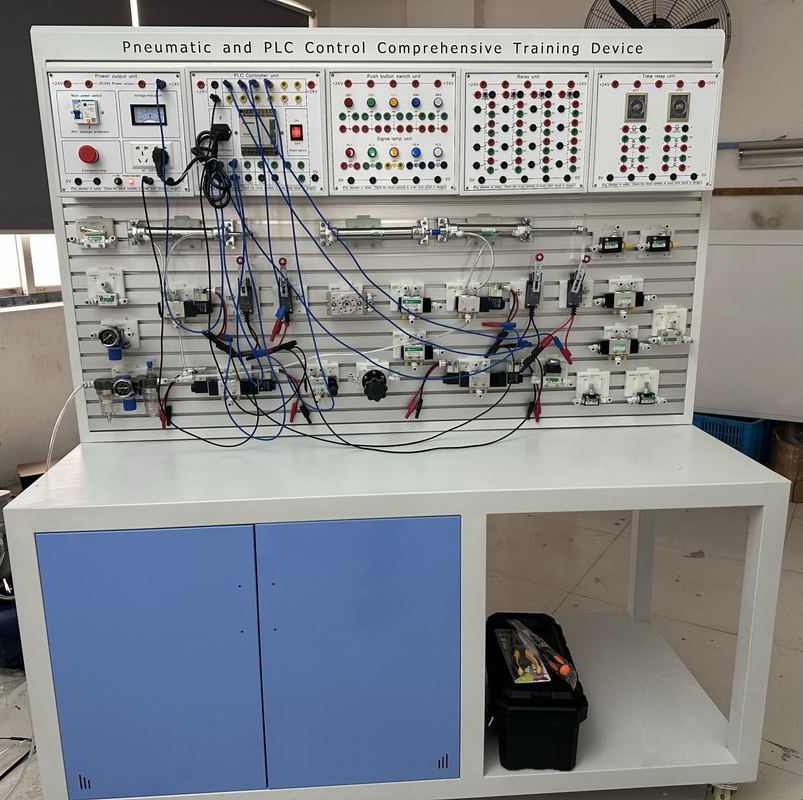

Modular Double‑Sided Pneumatic Training Bench Comprehensive Didactic Equipment For Vocational School Automation Lab Teaching

Main Features

1. This equipment consists of a training screen (with built-in power supply), a training table, and a storage cabinet. The main frame is constructed of sheet metal with spray-coated plastic and high-strength aluminum profiles. The aluminum profiles are treated with electrophoretic and electrostatic epoxy powder coatings, making them corrosion-resistant, fire-resistant, and moisture-resistant, making them both aesthetically pleasing and practical. The perforated plate fixing mechanism, comprised of multiple aluminum profiles and guide rails, connects the training screen and tabletop with screws. The tabletop is custom-made with 25mm heather-gray high-density laminate edge banding to effectively enhance insulation. The base of the table is equipped with at least four guide wheels for easy movement. The storage cabinet utilizes a standard three-tier structure with self-locking casters. The equipment storage cabinet can be flexibly adjusted as needed.
2. The training air supply pressure is low, and the electrical control utilizes a low-voltage 24V DC power supply. The training air circuit and control circuit are safe and reliable, with manual, automatic, and sequential control functions.
3. Power Supply Module: The power supply module is equipped with an AC voltmeter with a range of 0-250V to monitor the device's input voltage and is also equipped with a fuse. A high-voltage output terminal is provided for expansion of additional power supplies. The DC power output features overcurrent and short-circuit protection. The DC relay module is equipped with three DC +24V relays. All switching terminals (including coils) are connected to the panel, and corresponding indicators indicate when the coils are energized.
4. Control Button Module: Six green self-reset push button switches and six red self-locking push button switches. All push button switch terminals are connected to the panel.

Main Technical Parameters

1. Power Supply: AC 220V 50Hz
2. DC Power Supply: Input: AC 220V, Output: DC 24V/2A
3. Programmable Controller (S7-1200 host relay control)
4. Air Compressor (Basic Mini) Motor Power: 550W Power Supply: AC220V
5. Nominal Capacity: 15L Noise: 55dB
6. Rated Output Pressure: 1MPa
7. Training Device Dimensions: 1500mm * 650mm * 1700mm ±10%

Pneumatic Basic Training Circuit Experiment Project

1. Single-Acting Cylinder Reversing Circuit
2. Double-Acting Cylinder Reversing Circuit
3. Single-Acting Cylinder Speed Control Circuit
4. Double-Acting Cylinder Unidirectional Speed Control Circuit
5. Double-Acting Cylinder Bidirectional Speed Control Circuit
6. Speed Switching Circuit
7. Buffer Circuit
8. Secondary Pressure Control Circuit
9. High/Low Pressure Conversion Circuit
10. Counting Circuit
11. Delay circuit
12. Overload protection circuit
13. Interlock circuit
14. Single-cylinder single-reciprocating control circuit
15. Single-cylinder continuous reciprocating motion circuit
16. Linear and rotary cylinder sequential motion circuit
17. Multi-cylinder sequential motion circuit
18. Dual-cylinder, synchronous motion circuit
19. Four-cylinder linkage circuit
20. Unloading circuit
21. OR-type shuttle valve application circuit
22. Quick exhaust valve application circuit
