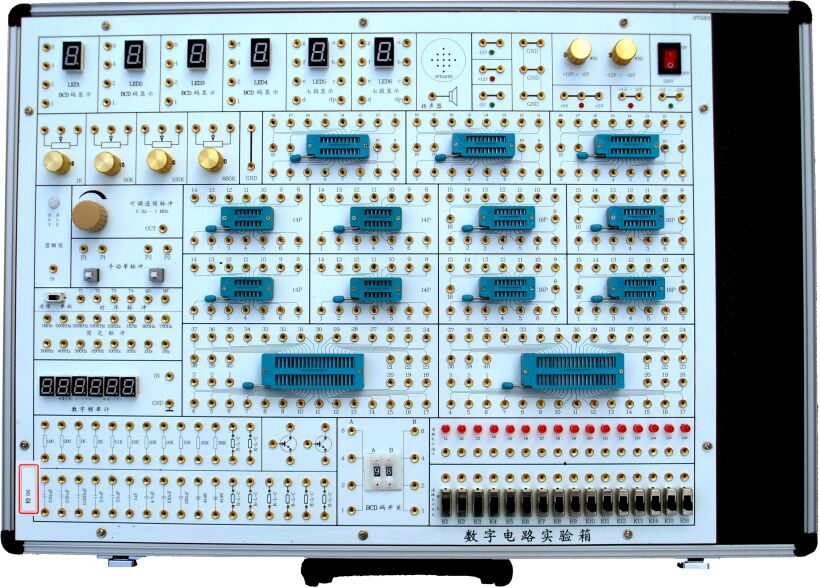

High Precision Digital Circuit Trainer Box With 16 Bit Logic Level Input Switches

High Precision Digital Circuit Trainer Box With 16 Bit Logic Level Input Switches

High Precision Digital Circuit Trainer

Digital Circuit Trainer Box

Digital Circuit Experiment Box

Place of Origin:

HENAN, CHINA

Brand Name:

RM

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

F127

Chat Now
Request A Quote
High Precision Digital Circuit Trainer Box With 16 Bit Logic Level Input Switches
Product Details
Type:
Educational/Training Device
Included Accessories:
Connecting Wires, Instruction Manual
Power Supply:
AC 220V / 50Hz Or DC 12V
Safety Features:
Overload Protection, Short Circuit Protection
Material:
High-quality ABS Plastic And Metal Components
Training Modules:
Circuit Analysis, Motor Control, Transformer, Relay, PLC
User Level:
Beginner To Advanced Electrical Students
Highlight:

High Precision Digital Circuit Trainer

,

Digital Circuit Trainer Box

,

Digital Circuit Experiment Box

Payment & Shipping Terms
Minimum Order Quantity
1 UNIT
Packaging Details
WOODEN PACKING
Delivery Time
30-45 WORK DYS
Payment Terms
T/T
Supply Ability
5 UNIT/30 DAYS
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description

Digital Circuit Trainer Box With 16-Bit Logic Level Input Switches Six-Digit High-Precision Digital Frequency Meter And Open Experiment Area

I. System Composition
  1. Power Supply: AC input: 220V±10%, 50Hz; Fixed DC output: 5V/2A, -5V/0.5A, ±12V/0.5A; Adjustable DC output: +1.2V～+27V (0.5A), -1.2V～-12V (0.5A)
  2. Manual single-pulse circuits (2 sets): Each set can output positive and negative pulses simultaneously with TTL level amplitude.
  3. Continuous pulse source: 0～1MHz.
  4. Fixed-frequency pulse sources (16 channels) with TTL level output: 1Hz, 2Hz, 10Hz, 100Hz, 200Hz, 300Hz, 400Hz, 500Hz, 700Hz, 800Hz, 1KHz, 10KHz, 100KHz, 250KHz, 500KHz, 1MHz.
  5. Timing pulse generation circuit and start-stop control circuit: It can generate four-channel pulse signals with the same pulse period as the input clock signal, and the four pulses differ from each other by one input clock cycle in sequence.
  6. Six-digit high-precision digital frequency meter: Measuring range 0-9.9999MHz, error <1Hz.
  7. 16-bit logic level input switches: Capable of inputting low level '0' and high level '1' (positive logic adopted).
  8. 16-bit logic level indicator lamps: The lit lamp indicates high level '1', and the unlit lamp indicates low level '0'.
  9. Nixie tube display: A BCD code decoding and display circuit composed of four 7-segment LED nixie tubes, plus 2 additional 7-segment LED nixie tubes, for display in experiments such as digital clock and calendar.
  10. Loudspeaker and driving circuit: Can be used as a sound generating device for clock chime, alarm and music playing.
  11. BCD code switches (2 sets): Provide BCD input.
  12. Logic pen: Red for high level; Green for low level; Orange for high impedance.
  13. Variable potentiometers (4 pieces) with resistance values of 1KΩ, 50KΩ, 100KΩ and 680KΩ respectively.
  14. Open experiment area: For extended experiments and curriculum design.
    • Equipped with 2 pieces of 40-pin locking sockets, 3 pieces of 20-pin locking sockets, 4 pieces of 16-pin locking sockets and 4 pieces of 14-pin locking sockets, which can be inserted with various ICs of 8-pin to 40-pin (high-reliability round-pin integrated circuit sockets are also applicable).
    • Discrete component plug-in area: For plugging in resistors, capacitors, zener diodes, diodes, triodes and other components for easy expansion.
II. Experimental Projects
  1. Logic function and test experiment of gate circuits
  2. Experiment of combinational logic circuits (half-adder, full-adder and logic operation)
  3. Flip-flop experiment (1) R-S, D, JK flip-flops
  4. Flip-flop experiment (2) Tri-state output flip-flops, latches
  5. Test and research of sequential circuits
  6. Experiment of integrated counters and registers
  7. Experiment of decoders and data selectors
  8. Experiment of waveform generators and monostable flip-flops
  9. Experiment of 555 timer circuit
