High Expandability Analog Circuit Electrical Training Box With Gold Plated Jacks

High Expandability Analog Circuit Electrical Training Box With Gold Plated Jacks

analog circuit electrical training box

analog electrical training box

analog electrical training kit

Place of Origin:

HENAN,CHINA

Brand Name:

RM

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

F128

Chat Now
Request A Quote
High Expandability Analog Circuit Electrical Training Box With Gold Plated Jacks
Product Details
Material:
High-quality Insulated Plastic And Metal Components
Purpose:
To Provide Practical Training In Electrical Engineering And Circuitry
Compatibility:
Compatible With Standard Multimeters And Oscilloscopes
User Level:
Beginner To Intermediate Electrical Engineering Students
Voltage Range:
110V - 240V AC
Power Supply:
AC Mains Or DC Power Supply
Safety Features:
Overload Protection, Insulated Terminals, Emergency Stop Button
Number Of Modules:
10 Training Modules
Included Components:
Switches, Resistors, Capacitors, Transformers, Wiring Boards
Warranty:
1 Year
Highlight:

analog circuit electrical training box

,

analog electrical training box

,

analog electrical training kit

Payment & Shipping Terms
Minimum Order Quantity
1 UNIT
Packaging Details
WOODEN PACKING
Delivery Time
30-45 WORK DAYS
Payment Terms
T/T
Supply Ability
5 UNIT /30 DAYS
RELATED PRODUCTS
Contact Us
+86--177 6075 7821
edu1@ruimuint.com
Chat Now
Product Description

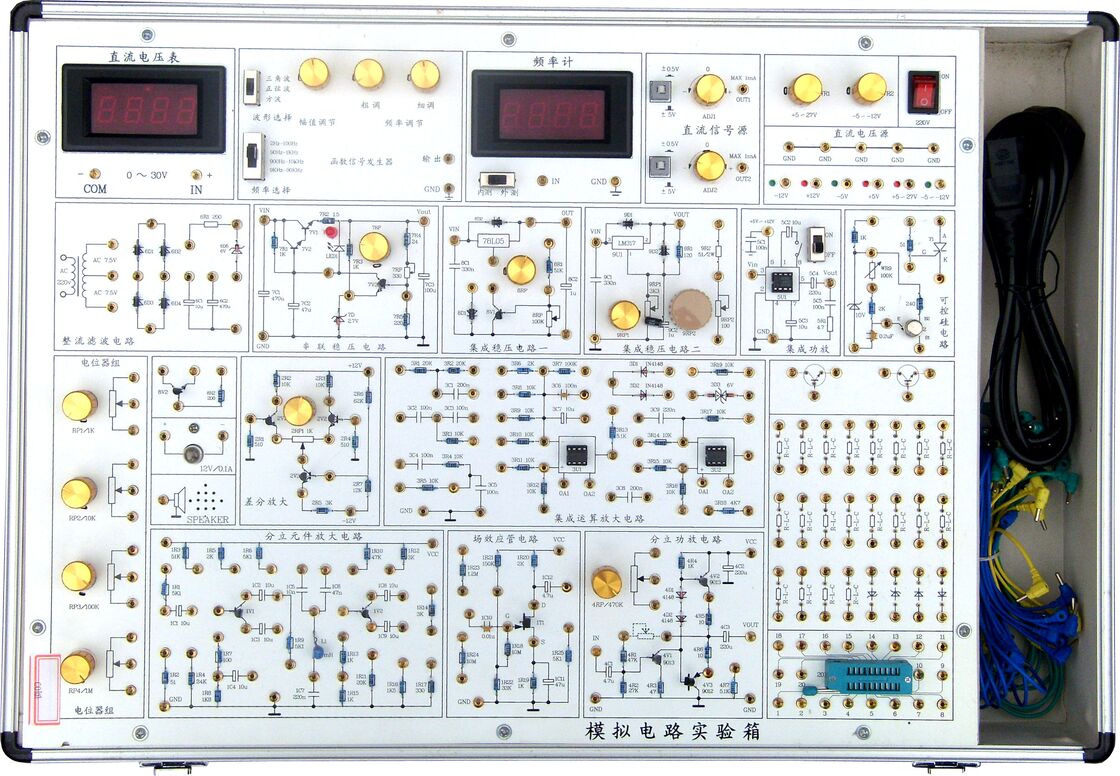

High Expandability Analog Circuit Experiment Box with Gold-Plated Jacks and Integrated Aluminum Alloy Profile for Electrical Training

System Features
  1. High expandability: The experimental circuits are designed in the form of unit circuits, which serve as basic experimental circuits. By connecting external components to adjust circuit parameters or combining with other unit circuits, different experimental requirements can be met.
  2. Experimental schematics are printed on the surface of the experiment board. Students build experimental circuits in accordance with the schematics, which not only cultivates their independent thinking and practical abilities but also enhances the applicability and expandability of the experiment box.
  3. Components are mounted on the reverse side of the experiment board to reduce man-made damage to the components.
  4. The jacks for experimental wiring adopt stacked self-locking gold-plated jacks, which are fixed on the experiment board by welding, featuring no loosening, no oxidation, long service life, reliable connection, and convenient and simple maintenance.
  5. There is a discrete component plug-in area for plugging in resistors, capacitors, diodes, triodes, integrated circuits, etc., enabling curriculum design experiments.
  6. All power supply outputs are equipped with overcurrent protection and automatic recovery functions.
  7. The experiment box is made of integrated aluminum alloy profiles, with a firm and reliable body that does not deform and is light in weight. It has good insulation and safety performance, convenient and reliable switch of the box cover, as well as an attractive and grand appearance.
  8. The system is equipped with the circuit design and simulation software - Electronics.Workbench.Multisim.v9.0, which helps students conduct simulation tests first when designing experimental circuits independently to improve the design success rate.
Experimental Projects
  1. Practice on the use of common electronic instruments, testing of diodes and triodes with a multimeter
  2. Single-stage amplifier circuit
  3. Two-stage amplifier circuit
  4. Negative feedback amplifier circuit
  5. Emitter follower
  6. Differential amplifier circuit
  7. Proportional summing operation circuit
  8. Integral and differential circuit
  9. Waveform generation circuit
  10. Active filter
  11. Voltage comparator
  12. Integrated circuit RC sine wave oscillator
  13. Integrated power amplifier
  14. Rectifier filter and shunt voltage regulator circuit
  15. Series voltage regulator circuit
  16. Integrated voltage regulator
  17. RC sine wave oscillator
  18. LC oscillator and frequency-selective amplifier
  19. Current/voltage conversion circuit
  20. Voltage/frequency conversion circuit
  21. Complementary symmetric power amplifier
  22. Waveform conversion circuit
  23. Field effect transistor experiment
  24. Thyristor experimental circuit
Comprehensive Experiments
  1. Assembly and debugging of function signal generator
  2. Temperature monitoring and control circuit
  3. Design and debugging of a multimeter composed of operational amplifiers
Tags：

educational training equipment

electrical training kit

electronics trainers

RELATED PRODUCTS
Power Electronics Breadboard Trainer Kit With 220V±10% 50HZ Power Supply CPLD Chip Construction
