Name: Power Transformer Training Platform | Three-Phase Single-Phase Transformer Test Bench for Electrical Vocational Training
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F104
Availability: InStock

Home > Products > Electrical Training Equipment >

Power Transformer Training Platform | Three-Phase Single-Phase Transformer Test Bench for Electrical Vocational Training

three-phase transformer test bench

single-phase transformer training platform

electrical vocational training equipment

Place of Origin:

Henan,China

Brand Name:

RUIMU

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

RM-F104

Chat Now

Request A Quote

Product Details

Material:

Metal

Electric Powered:

Yes

Printing:

Uv Printing

Place Of Origin:

Henan, China

Size:

1300*650*1700mm

Model Number:

RM-F104

Brand Name:

RUIMU

Application:

Training Institute Or Laboratory

Function:

Laboratory Equipment

Warranty:

1 Year

Packaging:

Wooden Packaging

Color:

White

Certificate:

ISO9001/ISO45001/ISO14001

MOQ:

1 Unit

OEM&ODM:

Support

Highlight:

three-phase transformer test bench

single-phase transformer training platform

electrical vocational training equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

Packaging Details

Wooden Packing

Delivery Time

30~45

Payment Terms

T/T

Supply Ability

5 Unit/30Days

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

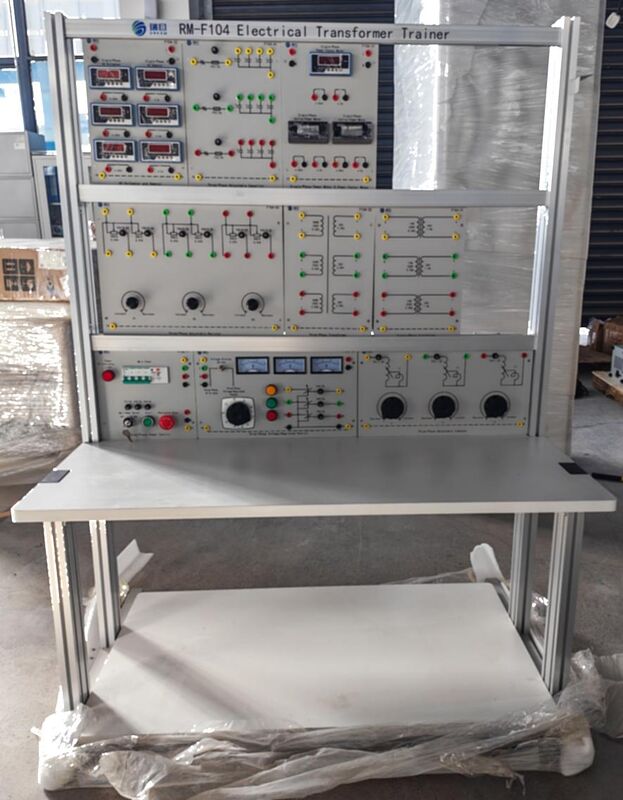

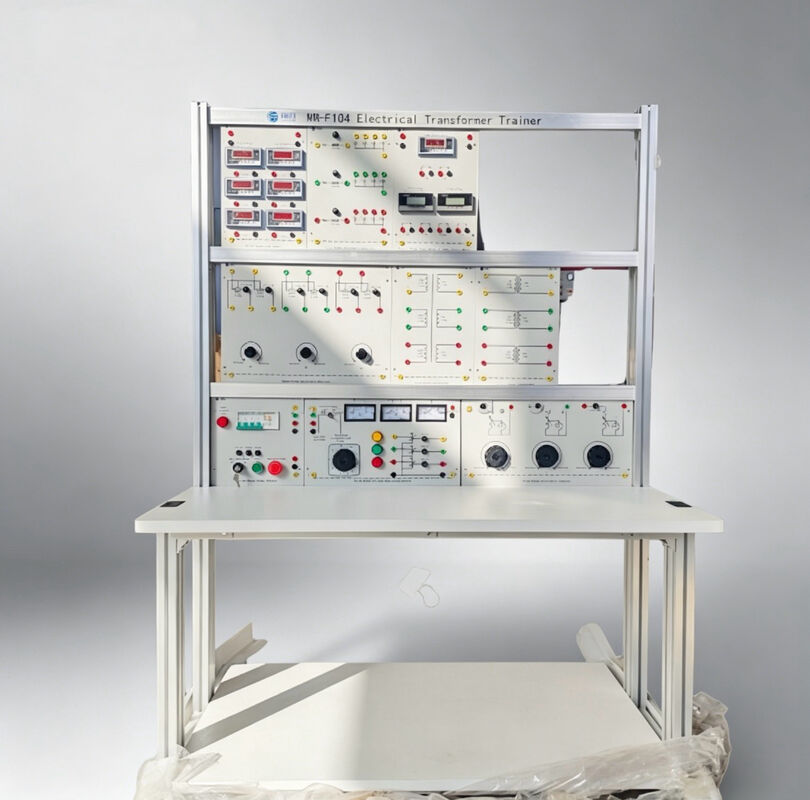

The RM-F104 Power Transformer Training Platform is designed for electrical engineering vocational schools and power company staff training. It supports transformer structure recognition, turns ratio, no-load, load and short-circuit testing. Adopting modular design with comprehensive safety protection and easy operation, it intuitively demonstrates transformer working principles and operating characteristics, covering single-phase/three-phase characteristics and parameter measurement training needs.

Project Design Advantages

The RM-F104 Power Transformer Training Platform is tailored for vocational electrical engineering education and power enterprise skill training. It enables transformer structure identification, turns ratio, no-load, load and short-circuit performance tests, vividly demonstrating transformer working principles and operational characteristics, and supports single/three-phase characteristic analysis and parameter measurement training.

1. Modular Cabinet
Detachable workbench and upper frame for easy assembly and handling; bottom support feet and casters enable height adjustment and flexible movement. Side columns are fitted with cable trays holding up to 48 cables.
2. Multifunctional Modular Combination
It consists of standard modules including three-phase power control, voltage regulation control, single/three-phase transformers, power and power factor meters, AC voltage/current meters, as well as adjustable capacitor, inductor and resistor modules. Modules can be freely added or removed as required.
3. Complete Training Items
Equipped with transformers, fuses, switches, indicating meters and load components. It covers comprehensive training contents such as single-phase transformer parallel operation, and Y-Y12, Y-Δ11 connection modes as well as voltage vector diagram analysis of three-phase transformers.
4. Reliable Safety Protection
Built-in leakage protection with independent equipment and power supply protection design, effectively preventing misoperation and ensuring personal and device safety.

Specification

Operating Environment

Temperature -10℃～+40℃, Relative Humidity

Power Supply

AC 3*220V±10%, 50Hz, Power Consumption: ≤1kVA

Dimensions

(L×W×H) 1230×750×1750 (mm);

Equipment color

White outer frame, fine white wrinkles on the panel

Equipment weight

≤150kg

Operating Current

 ≤30mA; Leakage Protection Operating Time: ≤0.1s, when there is leakage in the line, it protects and cuts off the output power
supply

Main Features:1. Modular Cabinet Detachable table and frame for easy assembly; bottom support feet and casters for flexible moving; side cable trays hold up to 48 cables.
2. Modular Functional Design Composed of standard modules including power control, voltage regulation, single/three-phase transformers, meters and adjustable components. Modules are optional and customizable.
3. Complete Training Functions Configured with full electrical components to support single/three-phase transformer training, covering parallel operation, Y-Y12 & Y-Δ11 connection and vector diagram analysis.
4. Reliable Safety Protection Leakage protection with independent power and equipment isolation design, preventing misoperation and ensuring personnel and device safety.
Practical Training ProjectsTraining 1: Measuring the turns ratio and parameters of a single-phase transformer through no-load and short-circuit experiments.Training 2: Drawing a T-type equivalent circuit diagram based on parameters measured from no-load and short-circuit experiments.
Training 3: Measuring the operating characteristics of a single-phase transformer through resistive/inductive/capacitive load experiments.
Training 4: Parallel operation of single-phase transformers (polarity identification, parallel connection of two transformers).
Training 5: Identifying the high/low voltage windings of a three-phase transformer, measuring primary/secondary polarity.Training 6: Measuring the turns ratio and parameters of a three-phase transformer through no-load and short-circuit experiments.
Training 7: Y-Y12 connection method and voltage vector diagram of a three-phase transformer.
Training 8: Y-Y6 connection method and voltage vector diagram of a three-phase transformer.
Training 9: Y-Δ11 connection method and voltage vector diagram of a three-phase transformer.
Training 10 Three-phase transformer Y-Δ5 connection method and its voltage vector diagram
