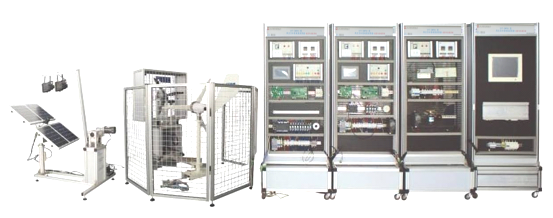

Modular Wind-Solar Hybrid Power Training System with DSP Control Unit and 20W Photovoltaic Cell Modules

The RM-F178 wind-solar hybrid power generation training system features a comprehensive modular design that enables expansion and upgrading to meet evolving training requirements and industry standards. The system integrates photovoltaic power supply, wind power generation, inverter and load management, and advanced monitoring capabilities.

Comprehensive solar power simulation with dual-axis tracking and automated control systems.

• Four parallel-connected photovoltaic modules (20W each)
• Dual 300W projection lamps with light sensors
• Horizontal and vertical motion mechanisms
• Single-phase AC motor and DC motor drives
• Advanced position limiting and protection systems

Advanced control and monitoring system with dual operational modes and battery management.

• Manual and automatic sun tracking modes
• DSP control unit for battery charging and protection
• Siemens S7-200 PLC integration
• Four valve-regulated sealed lead-acid batteries (12V 18Ah/20HR)
• Touch screen interface for system monitoring

Realistic wind turbine simulation with variable wind conditions and safety systems.

• Horizontal-axis permanent magnet synchronous wind turbine
• Variable pitch and crosswind yaw control mechanisms
• Axial flow fan system for simulated wind farms
• Advanced braking and safety protection systems
• Tower-mounted configuration with motion mechanisms

Comprehensive wind power control with frequency conversion and automated operation.

• Manual and automatic yaw control
• Frequency converter for variable air volume (0-50Hz)
• DSP control unit for system management
• Stall and feathering protection mechanisms
• Touch screen monitoring interface

Power conversion and distribution system with comprehensive testing capabilities.

• DC to AC power conversion (220V, 50Hz)
• Frequency converter and three-phase AC motor
• LED stage lighting and warning light modules
• Inverter parameter detection and testing
• SPWM waveform analysis capabilities

Integrated monitoring and control system with comprehensive measurement and analysis capabilities.

• 50MHz 2-channel virtual oscilloscope
• 2-channel logic analyzer function
• 1-channel arbitrary waveform signal generator
• 200MSa/s high-speed real-time sampling
• 2-channel PWM pulse signal generator
• Multimeter functions (resistance, DC/AC voltage, AC current)
• Human-machine interface with waveform display
• Experimental report generation and upload capabilities

• Installation, wiring and commissioning of photovoltaic systems
• Photovoltaic cell array output characteristics testing
• Wind power system installation and commissioning
• Inverter system installation and parameter measurement
• Battery pack charging and discharging testing
• DSP controller programming for charging processes
• MCGS touch screen configuration operation
• RS232 and RS485 communication cable soldering
• Solar cell module array design and testing
• PLC programming for sun tracking automation
• Photoresistor and voltage comparator testing
• IU characteristics and output power measurement
• Wind turbine generator installation and testing
• Passive and active yaw performance debugging
• Wind power electrical control principles
• Wind turbine yaw control programming
• Inverter parameter setting and configuration
• Different load design and connection training
• Communication protocols and host computer setup
