Ø Product Introduction

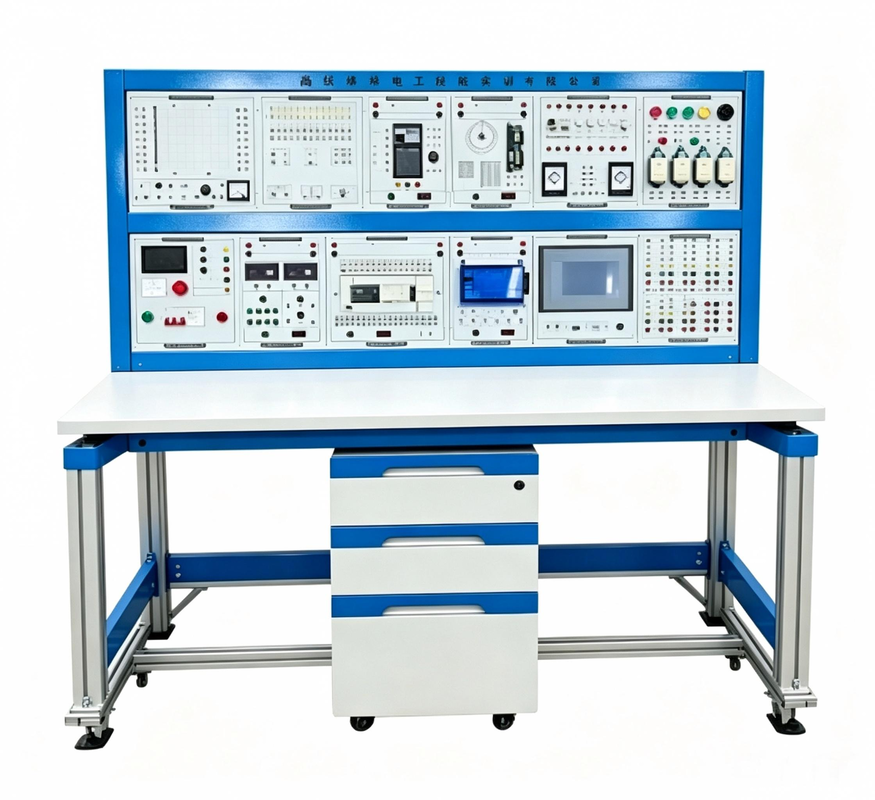

This device mainly consists of a training table, training modules, and training components. Students select appropriate components based on the training circuit, and all wiring is completed by the students themselves, closely resembling an industrial setting. It enables comprehensive practical training in the simulation, installation, and debugging of machine tool circuits, motor control circuits, and lighting power distribution, thus improving students' hands-on skills and practical abilities. Students can determine their own training projects and select corresponding components accordingly. This device can also be used for electrician qualification examinations.

Ø Product Features

1. All electrical control circuit components are mounted on the module and connected to terminals via safety sockets. Only pluggable safety wires are needed to connect the experiments. To reduce component damage and ensure student safety, the design principle is to use non-interlocking safety sockets for high and low voltage, making operation convenient, replacement easy, and allowing for easy expansion of functions or development of new training projects.

2. The operating console only requires a three-phase four-wire AC power supply to be put into use. It occupies a small area, saves on training room space, reduces infrastructure investment, and has significant economic benefits.

Ø Technical Specifications

1. Input power supply: Three-phase five-wire system ~380V±10% 50Hz

2. Temperature: -5℃～+40℃, relative humidity <85% (25℃)

3. Device capacity: <1.5KVA

4. Approximate external dimensions: 1600mm × 750mm × 1690mm

Ø Practical Training Projects

Electrical Control Training

1.Automatic switching control circuit for three-phase asynchronous motors

2.Three-phase asynchronous motor jogging control circuit

3.One-way start/stop control circuit / asynchronous motor self-locking control circuit

4.Three-phase asynchronous motor jogging and continuous running control circuit

5.Three-phase asynchronous motor dual-location control circuit

6.Three-phase asynchronous motor contactor interlocking forward and reverse control circuit

7.Three-phase asynchronous motor double interlock forward and reverse control circuit

8.Automatic reciprocating control circuit

9.Three-phase asynchronous motor series resistor reduced voltage starting control circuit

10.Star and delta control circuits for three-phase asynchronous motors

11.Manual sequential control circuit for two motors

12.Automatic sequential control circuit for two motors

13.Three-phase asynchronous motor power reverse connection braking control circuit

14.Three-phase asynchronous motor energy consumption braking control circuit

15.Dual-speed motor control circuit

16.CA6140 General Lathe Circuit

17.Electrical control circuit of electric hoist

Advanced Integrated Electrical Training

1.Touchscreen indicator light object experiment

2.Touchscreen Switch Experiment

3.Touchscreen data display experiment

4.Touchscreen data input experiment

5.Touchscreen bar graph object experiment

6.Touchscreen object experiment

7.Touchscreen moving component object experiment

8.Touchscreen Abnormal Alarm Object Experiment

9.Touchscreen static display experiment

10.Touchscreen Pin Control Object Experiment

11.Y/Δ starting control of a three-phase asynchronous motor based on touch screen PLC control

12.PLC-controlled motor jogging and self-locking control
