Comprehensive Training Device for Hydraulic and Pneumatic PLC Control Modular High‑Performance Electro‑hydraulic Pneumatic Training Bench for Mechatronics Laboratory Education

Product Introduction

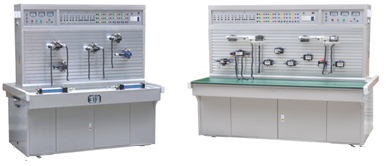

The Hydraulic and Pneumatic Transmission Comprehensive Training Device features a two-in-one design, equipped with two sets of experimental equipment: a pneumatic and PLC training platform, and a hydraulic transmission and PLC training platform. Each set is equipped with independent PLC electrical control equipment.

This single device can independently conduct basic circuit and application experiments for hydraulic and pneumatic control, as well as PLC programming and application control experiments. It is suitable for teaching and training courses such as "Hydraulic Transmission and Control," "Hydraulic and Pneumatic Transmission," and "Pneumatic Technology."

Hydraulic Transmission Technical Parameters and Specifications

This system integrates real hydraulic components, actuator modules, a relay control unit, and PLC programming control technology. The hydraulic components are self-contained modules, each equipped with a base plate with flexible pins. During practical training, various hydraulic system circuits can be assembled on a universal aluminum plate. The motor and pump are connected (integrated) with bearings and then fixed to the oil tank. The oil tank and control panel are housed separately. The system features three-phase leakage protection and a DC power supply with overcurrent protection. The system has a rated pressure of 6.3 MPa and automatically unloads when overpressure occurs.

Main technical parameters

• Input Power: Three-phase, five-wire, 380V. Tolerance: ±10%, 50Hz.
• Device Capacity: <1.5kVA.
• Variable Displacement Vane Pump: Pressure: 7 MPa. Discharge Rate: 8 mL/min. Speed: 1450 rpm. The PLC uses a Mitsubishi FX1S-20MR main unit with 12 digital inputs and 8 digital outputs. It also includes control modules: power supply module, relay control module, and PLC control module.
• The motor has a rated voltage of 380V, a rated power of 1.5kW, and insulation class B. The hydraulic pump unit has a maximum capacity of 90L and includes 2mm steel plates, a variable displacement vane pump and motor, an oil temperature and level gauge, a cleaning cover, an air filter, a shock-resistant stainless steel pressure gauge.
