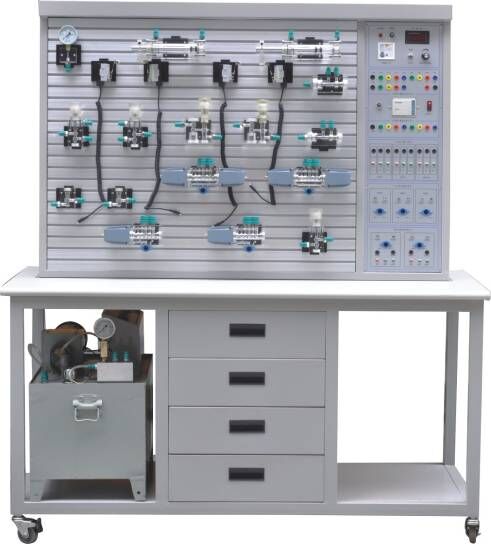

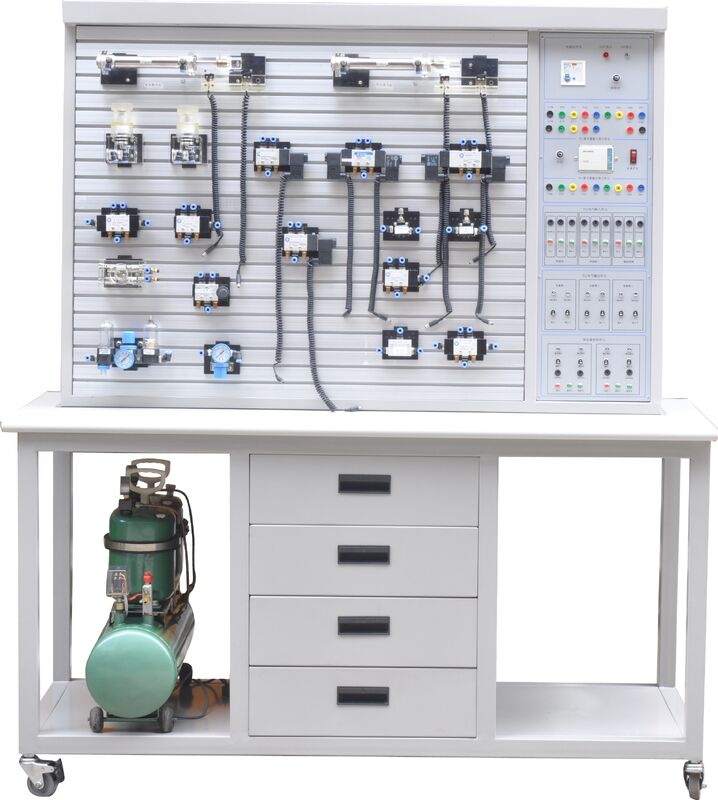

Pneumatic Hydraulic PLC Integrated Hydraulic Trainer System Mechatronics Automation Laboratory System

Pneumatic Hydraulic PLC Integrated Hydraulic Trainer System Mechatronics Automation Laboratory System

integrated hydraulic trainer system

hydraulic trainer system mechatronics

plc hydraulic bench trainer

Place of Origin:

HENAN,RUIMU

Brand Name:

RM

Certification:

ISO9001/ISO45001/ISO14001,TUV

Model Number:

F048

Chat Now
Request A Quote
Product Details
Powersupply:
220V/50Hz
Application:
Educational And Industrial Training
Productname:
Hydraulic Trainer
Trainingmodules:
Basic Hydraulic Circuits, Advanced Hydraulic Systems
Warranty:
1 Year
Safetyfeatures:
Emergency Stop Button, Pressure Relief Valve
Highlight:

integrated hydraulic trainer system

,

hydraulic trainer system mechatronics

,

plc hydraulic bench trainer

Payment & Shipping Terms
Minimum Order Quantity
1unit
Packaging Details
wooden packing
Delivery Time
30-45 work days
Payment Terms
T/T
RELATED PRODUCTS
Contact Us
Product Description

Pneumatic Hydraulic PLC Integrated Control Training Equipment, Mechatronics Automation Laboratory System

Product Introduction

The Pneumatic-Hydraulic-PLC Integrated Control Laboratory was developed by our company based on the teaching syllabus requirements for pneumatic, electrical, and hydraulic control in mechatronics courses at universities. It integrates the advantages of our pneumatic and hydraulic PLC control experimental equipment, and was developed through continuous innovation and improvement after extensive consultation with experts, professors, and teachers. It is currently an ideal comprehensive experimental device integrating pneumatic control technology, hydraulic transmission control technology, and PLC programmable controller control technology. During experiments, these technologies can complement and cross-control each other. This allows students to intuitively and perceptually compare and understand the characteristics, features, advantages, and disadvantages of each pneumatic, electrical, and hydraulic system.

Practical Training Projects
  1. Reversing circuit using a manual directional valve.
  2. Use a lock circuit for a mid-position functional directional valve.
  3. Use a hydraulically controlled directional valve for the locking circuit.
  4. Pressure setting circuit.
  5. Two-stage pressure control loop.
  6. Pressure reducing circuit using a pressure reducing valve.
  7. Use a booster circuit with a booster cylinder.
  8. Unloading circuit using H- type directional valve.
  9. Oil inlet throttling speed control circuit.
  10. Return oil throttling speed regulation circuit.
  11. Reversing speed control circuit of variable speed gear pump.
  12. A composite speed control circuit consisting of a speed-regulating gear pump and a speed-regulating valve.
