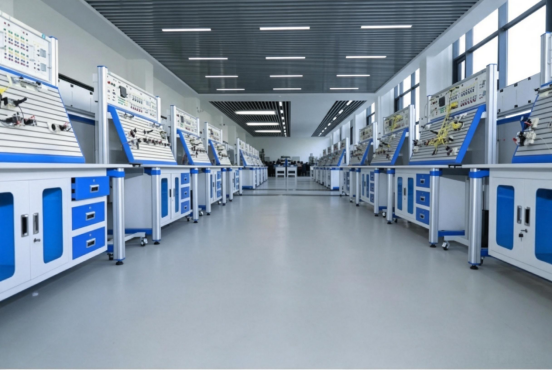

Hydraulic Transmission and PLC Training Device (Industrial Single-Sided Type)
Product Introduction
The RM-F140 hydraulic transmission and PLC training device (industrial single-sided type) is primarily used for experimental teaching of hydraulic transmission courses in engineering colleges and universities. It features advanced Rexroth-type hydraulic components and a unique modular design that enables easy connection and assembly of hydraulic systems. Through self-selected experiments, students gain comprehensive understanding of hydraulic system composition, working principles, differential pressure and flow characteristics, static and dynamic characteristics of major components, and testing of various hydraulic circuits, thereby enhancing hands-on skills, design capabilities, and comprehensive application abilities.
Main Features
Experimental Platform Structure: Constructed from 2.0mm metal sheet with hydraulic component storage box, featuring silver powder coating for elegant appearance, anodized panel, and T-slot aluminum profile operating platform
Modular Components: Each hydraulic component designed as independent module with base plate for easy installation on universal aluminum alloy profiles
Connection Method: Closed-type leak-proof quick-connect connectors ensure simple, fast, and reliable experimental circuit assembly with excellent sealing and hygiene
Hydraulic Valve Performance: Standard industrial-grade components using reliable domestic brand-name products with high accuracy
Scalable Experimentation: Provides strong expandability with large aluminum alloy panel assembly platform while maintaining equipment stability
Easy Maintenance: Minimized maintenance workload with separate component storage, oil return tray for resource recycling, and convenient maintenance design
Diversified Control: PLC control, relay control, time relay control, and manual control options
System Safety Performance: Imported motor pump units with low noise, automatic pressure and flow control, maximum pressure withstand capability of 31.5 MPa, rated working pressure of 6.3 MPa, leakage protection, and safe 24V DC control circuits
Technical Parameters
Experimental Workbench:
Constructed from metal sheet body and aluminum alloy panel (T-shaped hook groove)
Dimensions: 1470 mm * 750 mm * 1800 mm (approximately 500 kg after packaging)
Hydraulic Pump Station:
System rated operating pressure: 7 MPa (Maximum 10 MPa)
Electric Motor-Pump Unit: Variable displacement vane pump (unidirectional, nominal displacement 6.67 mL/r) with three-phase AC motor (1.5KW, 1450r/min)
Oil Tank: Nominal volume 45 L with level and temperature indicators, oil suction and return filters, safety valve
Hydraulic Components:
Primarily using components from Beijing Huade Technology; each component equipped with oil passage transition base plate for flexible placement on aluminum alloy panel
Electrical Measurement and Control Unit:
Programmable Logic Controller (PLC): Mitsubishi FX1s-20MR series, 20 I/O ports, relay output, power supply voltage: AC 220V/50Hz; control voltage: DC24V
Equipped with manual, automatic, and sequential control functions, pressure gauge, flow meter, tachometer, and other measuring tools
