Product Description

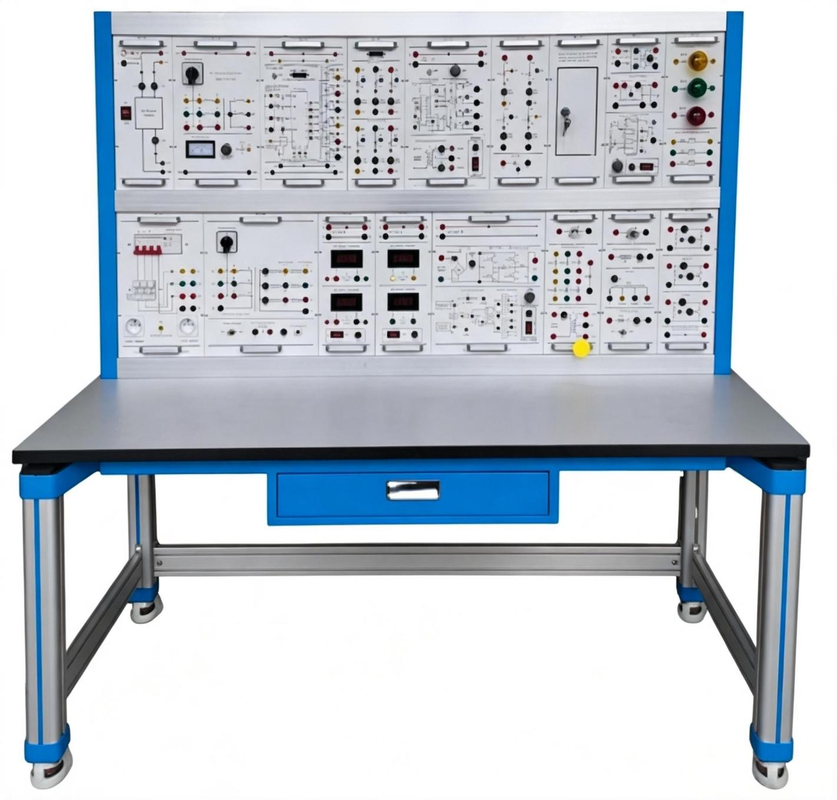

RM-158 Modern power electronics technology experimental device
Product Introduction

This power electronics training device integrates training functions for power device characteristics, single-phase rectifier circuits, three-phase rectifier circuits, DC chopper circuits, inverter circuits, and single-phase AC voltage regulation circuits. It cultivates students' understanding of power electronics technology principles, analytical abilities, and hands-on skills. The training platform is accompanied by a complete training manual to guide students in carrying out relevant experimental and training tasks.

Technical Specifications :
  1. Input voltage: Three-phase five-wire ~380V±10% 50Hz
  2. Device dimensions: Approximately 1600mm*700mm*1646mm.
Experimental Projects:
(I) Single-Phase Rectifier Circuit Training (AC-DC)
  • 2-1 Measurement of Single-Phase (Half-Wave, Bridge, Full-Wave) Uncontrolled Rectifier Circuit
  • 2-2 Experiment of Single-Phase Half-Wave Controlled Rectifier Circuit
  • 2-3 Experiment of Single-Phase Full-Wave Controlled Rectifier Circuit
  • 2-4 Measurement of Single-Phase Half-Controlled Bridge Controlled Rectifier Circuit
  • 2-5 Measurement of Single-Phase Bridge Controlled Rectifier Circuit
(II) AC Voltage Regulator Circuit Training (AC-AC)
  • 6-1 Measurement of Single-Phase AC Voltage Regulator Circuit
  • 6-2 Measurement of Three-Phase AC Voltage Regulator Circuit
(III) Three-Phase Rectifier Circuit Training (AC-DC)
  • 3-1 Measurement of Three-Phase Half-Wave Uncontrolled Rectifier Circuit
  • 3-2 Measurement of Three-Phase Half-Wave Controlled Rectifier Circuit
  • 3-3 Measurement of Three-Phase Bridge Half-Controlled Rectifier Circuit
  • 3-4 Measurement of Three-Phase Bridge Controlled Rectifier Circuit (Resistive and Inductive Loads)
Tags：

educational training equipment

electrical training kit
