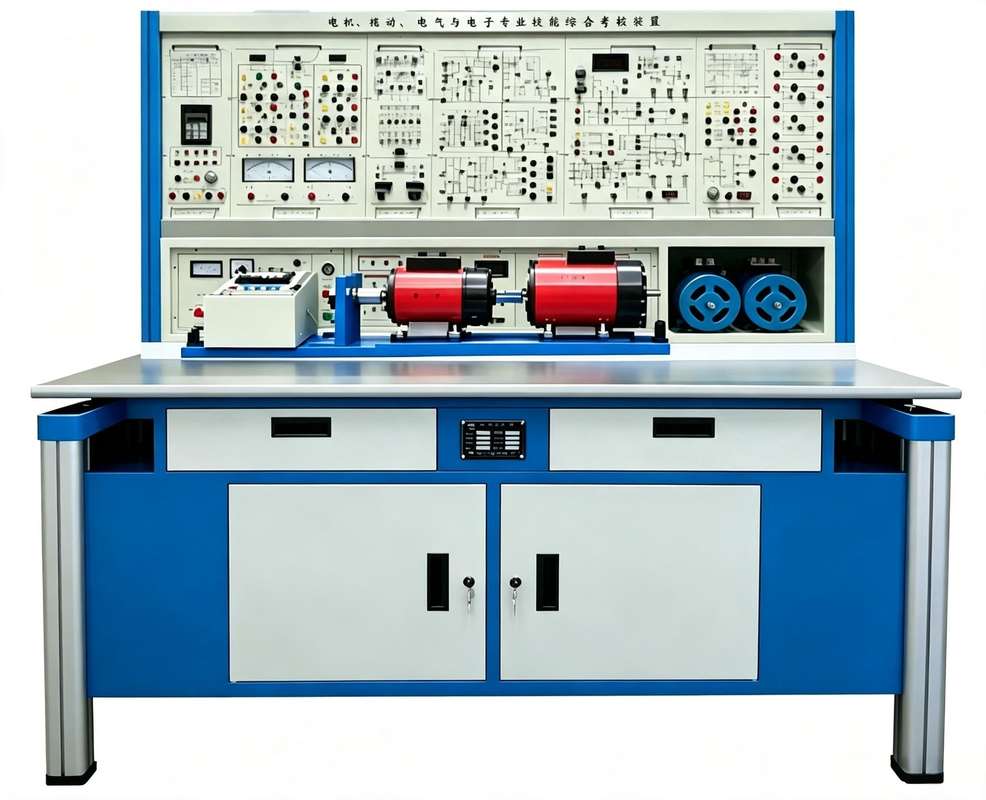

Comprehensive Power Electronics and Electrical Drive Training Equipment

This equipment covers all experimental items required for professional courses offered by universities, including Power Electronics (also known as Semiconductor Conversion Technology), DC Speed Regulation, AC Speed Regulation, Motor Control, Electric Drive Automatic Control System and Control Theory.

1. Input Power Supply: 3-phase 4-wire (or 3-phase 5-wire), 380V±10%, 50Hz
2. Operating Environment: Temperature -10℃ ~ +40℃; Relative Humidity ＜85% (at 25℃); Altitude ＜4000 m
3. Device Capacity: ＜1.5 kVA
4. Overall Dimensions: 160*70*160 cm (±10%)

1. Experiment on TCA785 Integrated Trigger Circuit
2. Experiment on Single-phase Half-wave Controlled Rectifier Circuit
3. Experiment on Single-phase Bridge Half-controlled Rectifier Circuit
4. Experiment on Single-phase Bridge Fully-controlled Rectifier and Active Inverter Circuit
5. Experiment on Three-phase Half-wave Controlled Rectifier Circuit
6. Experiment on Three-phase Bridge Half-controlled Rectifier Circuit
7. Experiment on Three-phase Half-wave Active Inverter Circuit
8. Experiment on Three-phase Bridge Fully-controlled Rectifier and Active Inverter Circuit
9. Experiment on Single-phase AC Voltage Regulation Circuit
10. Experiment on Three-phase AC Voltage Regulation Circuit

1. Measurement of Main Parameters of Power MOSFET
2. Research on Drive Circuit of Power MOSFET
