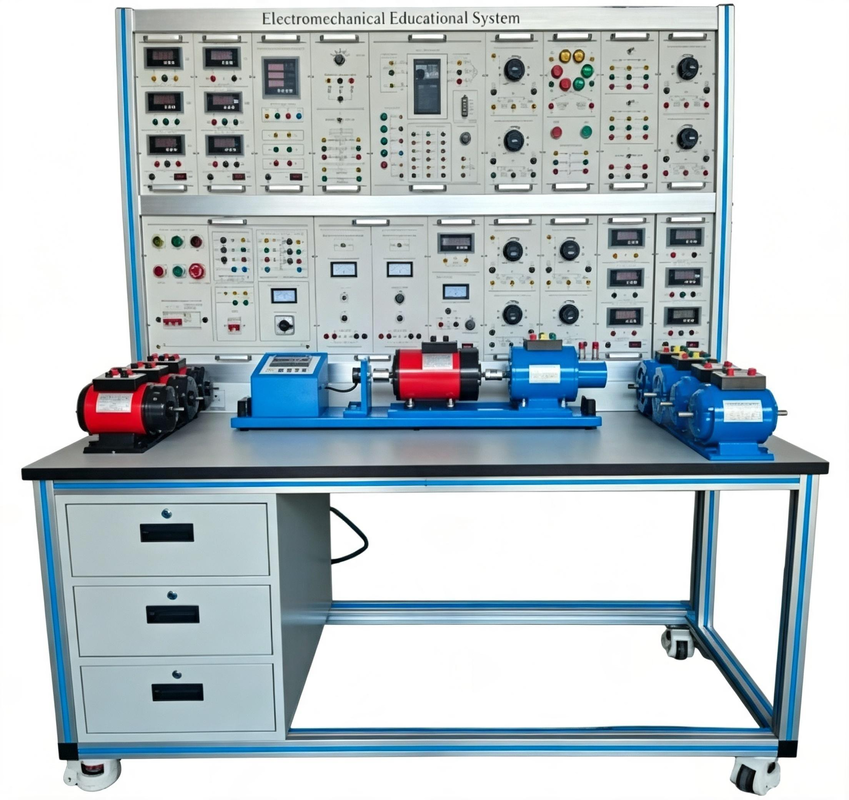

Electric Motor, Electric Drive and Electrical Technology Training Device

This device integrates the requirements of current experimental syllabi for courses such as "Electrical Machines," "Electrical Machines and Drives," "Electrical Machine Control," "Relay Contact Control," and "Factory Electrical Control" in Chinese higher education institutions. It is particularly suitable for upgrading and renovating existing electrical engineering and technology experimental equipment in higher education institutions. It also provides ideal experimental equipment for the rapid establishment of experimental courses in newly built or expanded laboratories in secondary vocational schools and vocational colleges, and provides excellent experimental conditions for teachers or graduate students to develop new experiments or conduct scientific research.

1. Input Power: Three-phase four-wire (or three-phase five-wire) ~380V±10% 50Hz
2. Operating Environment: Temperature -10℃～+40℃, Relative Humidity <85% (25℃), Altitude <4000m
3. Device Capacity: <1.5KVA
4. Weight: 300Kg
5. Dimensions: 160*70*180cm³

• 1.1 Introduction Experiments
• 1.2 DC Compound Generator
• 1.3 DC Shunt Motor
• 1.4 DC Series Motor

• 2.1 Single-Phase Transformer
• 2.2 Three-Phase Transformer
• 2.3 Connection Groups and Asymmetrical Short Circuits of Three-Phase Transformers

• 3.1 Operating Characteristics of a Three-Phase Squirrel-Cage Asynchronous Motor
• 3.2 Starting and Speed Regulation of a Three-Phase Wound-Roller Asynchronous Motor
• 3.3 Operating Characteristics of a Single-Phase Capacitor-Started Asynchronous Motor
• 3.4 Operating Characteristics of a Single-Phase Capacitor-Run Asynchronous Motor

• 4.1 Operating Characteristics of a Three-Phase Synchronous Generator
• 4.2 Grid-Connected Operation of a Three-Phase Synchronous Generator
• 4.3 Three-Phase Synchronous Motor
• 4.4 Measurement of Parameters of a Three-Phase Synchronous Motor
