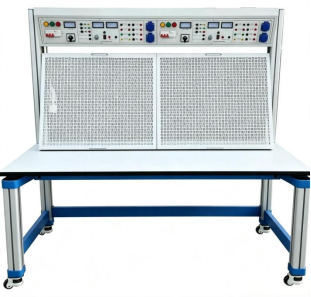

Mesh-type Basic Electrical Maintenance Training and Assessment Device (Single-sided, Double-group Type)

Product Overview

The RM-F144 mesh-type basic electrical maintenance training and assessment device features a comprehensive system comprising a multi-functional steel mesh mounting plate, training platform, and power supply unit. This innovative design allows for flexible installation of various training components, devices, and parts directly onto the mesh plate.

The system's modular approach enables customization according to specific teaching and training requirements, supporting diverse course modules and projects. With broad application capabilities, the RM-F144 facilitates completion of numerous teaching contents and training objectives while minimizing component damage and loss through centralized storage.

This economical and practical solution is particularly ideal for educational institutions with limited training space and restricted teaching budgets, enabling multiple specialized training programs within a single training environment.

Technical Specifications

Parameter	Specification
Overall Dimensions	1600mm * 700mm * 1750mm
Platform Material	Steel plate and aluminum alloy structure
Power Supply Input	Three-phase AC 380V ±10% 50HZ, three-phase five-wire
Fixed AC Output	Two sets of three-phase five-wire 380V plug-in type and two sets of 220V plug-in type
Adjustable DC Output	Two sets of continuously adjustable 0～24V/2A with real-time monitoring voltmeter and ammeter
Interfaces & Instruments	Two pointer-type voltmeters for continuous mains voltage monitoring
Protection Systems	Fuse short-circuit protection, circuit breaker overload protection, RCD residual current protection (≤30mA)
Rectifier Components	Four 5408 diodes for regenerative braking circuits
Resistor Specifications	Three 75Ω/75W resistors for motor reduced-voltage starting; One 10Ω/25W resistor for asynchronous motor regenerative braking

Equipment Structure & Functionality

The training platform comprises three main components: training screen (with built-in power supply), training table, and training storage cabinet.

Training Table Construction

Four industrial aluminum profile column support system with adjustable feet
Table height approximately 800mm with 30*30mm support frame capable of ≥300kg load capacity
70*70mm industrial aluminum profiles with oxidized surface treatment and four-sided grooves
C-shaped aluminum die-casting components with blue electrostatic powder coating finish

Tabletop & Mobility

25mm thick high-density light gray laminate with specialized edge design for enhanced insulation
Minimum four guide wheels installed beneath table for easy mobility

Storage Cabinet

Cold-stamped sheet metal construction with rounded edges (R=30mm) and closed structure
Dimensions: 450mm * 420mm * 550mm; Total weight ≥31kg
Heavy-duty three-section rails with ≥30kg load capacity
Snap-fit sheet metal edge-rolling drawer handles with locking mechanism
Four universal casters with braking system

Perforated Panels

CNC precision-machined perforated panels with uniform mesh distribution
1.5mm thickness panels compatible with various electrical components including low-voltage devices, PLCs, microcontrollers, frequency converters, and touch screens
