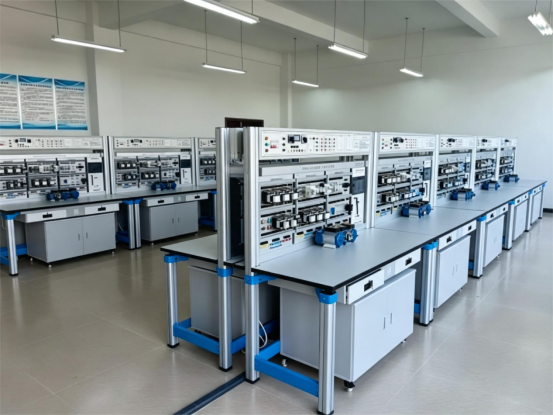

Name: Smart Power Management Electrical Training Device with Modular Hanging Boxes for Vocational Skill Assessment
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F145
Availability: InStock

Home > Products > Electrical Training Equipment >

Smart Power Management Electrical Training Device with Modular Hanging Boxes for Vocational Skill Assessment

Smart Power Management Electrical Training Device

Modular Hanging Boxes Maintenance Electrician Trainer

Vocational Skill Assessment Equipment

Place of Origin:

China

Brand Name:

RUIMU

Certification:

ISO9001/ISO14001/ISO45001

Model Number:

RM-F145

Chat Now

Request A Quote

Product Details

Application:

Vocational Electrical Skill Assessment Lab

Function:

Junior Maintenance Electrician Training

Feature:

Intelligent 7-Function Safety Power

Config:

Electrical + Single Chip Module

Type:

Electrician Assessment Training Bench

Highlight:

Smart Power Management Electrical Training Device

Modular Hanging Boxes Maintenance Electrician Trainer

Vocational Skill Assessment Equipment

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden packaging

Delivery Time

30-45 working days

Payment Terms

T/T

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

High-Performance Training Device for Junior Maintenance Electrician Skill Assessment

Product Overview

This training device is developed in accordance with the electrical control circuits and practical electronic circuits specified in the skill training and assessment standards for junior and intermediate maintenance electricians issued by the Ministry of Human Resources and Social Security. Practical training on this device enables learners to quickly master practical technologies and operational skills of relevant courses.

Featuring pertinence, practicability, scientific design and advanced performance, the equipment is suitable for student training. Meanwhile, it serves as ideal equipment for junior and intermediate maintenance electrician skill assessments carried out by vocational skill appraisal authorities, universities, colleges, vocational schools and technical schools.

Technical Specifications

Specification	Details
Input Voltage	3-phase 4-wire (or 3-phase 5-wire) AC 380V±10%, 50Hz
Operating Environment	Ambient temperature: -10℃ ~ +40℃; Relative Humidity ＜85% (at 25℃)
Overall Dimensions	16007001600 mm
Device Capacity	＜1.5 kVA

Product Features

Power Control Cabinet

The cabinet adopts double-layer matte textured spray-painted iron structure with aluminum panel.

Power supplied via three-phase four-wire power input with earth leakage protection
450V analog AC voltmeter with band switch for three-phase voltage observation
Low-voltage AC power supply with transformer (220V primary, 26V/6.3V secondary)
Four 5408 diodes for rectifier circuit of dynamic braking
Resistors for motor starting and braking applications

Training Desk

Dimensions: 1600 (L) * 700 (W) * 1500 (H) mm

High-performance surface anodized aluminum profiles with die-cast aluminum connecting components
25mm E1 grade melamine faced desktop
Support frame with 300kg+ bearing capacity
Storage cabinet with four heavy-duty lockable PU swivel casters
Support frame for electrical training hanging boxes with sliding grooves

Training Hanging Boxes

Pre-installed with professional electrical components

DW-01: AC contactors, pushbutton indicator lamps, terminal blocks, safety sockets
DW-02: Plug-in fuses, low-voltage circuit breakers, thermal overload relays, time relays
DW-03: Changeover switches, solenoid valves, joystick switches, limit switches
All components from well-known domestic and international brands
Safety sockets and sheathed banana plug connecting wires for secure operation

Intelligent Electrical Safety Control System

Advanced protection system with seven safety functions: over-temperature, short circuit, over-current, over-voltage, under-voltage, loss-of-voltage and power limit.

32-bit ARM chip core with 4.3-inch color touch screen interface
Real-time monitoring of three-phase voltage, current, power, and other parameters
Mobile APP and PC software integration for remote monitoring and control
Fault locking function with remote clearing capability
Wireless 4G and Ethernet communication support

Motor Components

Three-phase squirrel-cage asynchronous motor, 380V, Y connection
Three-phase squirrel-cage asynchronous motor, 380V, delta connection
