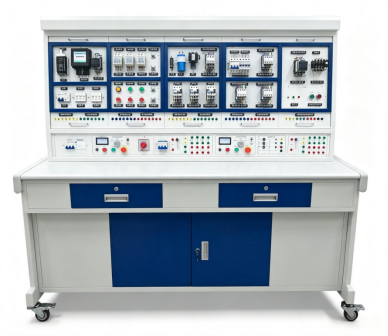

Name: Dual-group Design Maintenance Electrician Training Device with Earth Leakage Protection and Modular Hanging Plates
Brand: Henan Ruimu Intelligent Technology Co., Ltd.
SKU: RM-F147
Availability: InStock

Home > Products > Electrical Training Equipment >

Dual-group Design Maintenance Electrician Training Device with Earth Leakage Protection and Modular Hanging Plates

Dual-group Design Maintenance Electrician Training Device

Earth Leakage Protection Electrical Training Equipment

Modular Hanging Plates Vocational Skill Assessment Device

Place of Origin:

China

Brand Name:

RUIMU

Certification:

ISO9001/ISO14001/ISO45001

Model Number:

RM-F147

Chat Now

Request A Quote

Product Details

Application:

Vocational Electrical Lighting Lab

Function:

Instrument & Lighting Circuit Training

Feature:

Dual Independent Power Two Groups

Config:

Watt-hour Meter & Switch Modules

Type:

Electrician Lighting Assessment Bench

Highlight:

Dual-group Design Maintenance Electrician Training Device

Earth Leakage Protection Electrical Training Equipment

Modular Hanging Plates Vocational Skill Assessment Device

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden packaging

Delivery Time

30-60 working days

Payment Terms

T/T

RELATED PRODUCTS

+86--177 6075 7821

edu1@ruimuint.com

Chat Now

Product Description

Maintenance Electrician Instrument & Lighting Training and Assessment Device

This multi-functional training and assessment device is designed in compliance with national vocational skill standards and appraisal requirements. It integrates theoretical instruction, practical operation, and skill evaluation capabilities for comprehensive electrical training programs.

Product Features

Modular component mounting on hanging plates for easy operation, replacement, and system expansion
Compatible with standard 3-phase 4-wire AC power supply operation
Integrated voltage-type and current-type earth leakage protection for operator safety
Component wiring to terminal blocks for protected connections and student training
Standardized cable routing in wiring trunkings with safety sockets and reliable connecting wires
Dual-group design with independent power supplies for simultaneous two-student training

Technical Specifications

Input Voltage	3-phase 4-wire (or 3-phase 5-wire) AC 380V±10%, 50Hz
Operating Environment	Temperature: -10℃ ~ +40℃; Relative Humidity ＜85% (at 25℃); Altitude ＜4000m
Device Capacity	＜1.5 kVA
Weight	100 kg
Overall Dimensions	16807001630 mm
Earth Leakage Protection	Operating current: ≤30mA; Operating time: ≤0.1s

Device Configuration & Functions

Dual-group power supply system with start/stop controls and emergency stop functionality
Short-circuit protection for all power outputs
AC power supply providing line voltage 380V and phase voltage 220V with multiple power sockets
Four 1N5408 rectifier diodes for dynamic braking circuits
Multiple specification resistors: Three 75Ω/75W for reduced-voltage starting, One 10Ω/25W for dynamic braking
Intelligent multi-function AC circuit measuring meter with 8-digit LED display for comprehensive circuit monitoring
Double-layer matte textured spray-painted iron training desk with fireproof, waterproof high-density board top
Integrated storage drawers on both left and right sides
