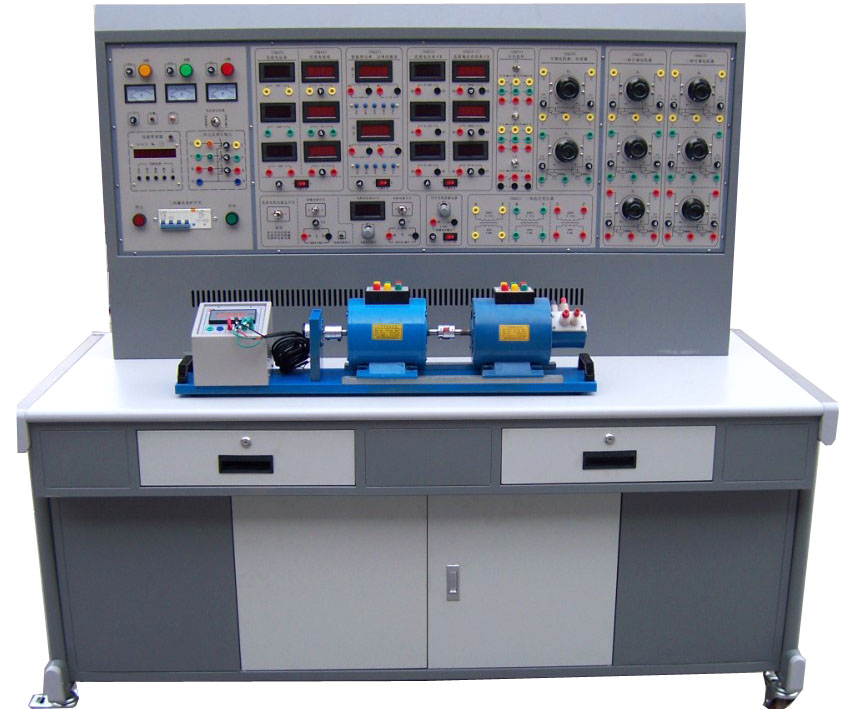

Motor and Transformer Training Device with Three-phase Four-wire Power Supply and Leakage Protection for Open-ended Experiments

The RM-F152 Motor and Transformer Training Device " is a novel comprehensive experimental device designed by our company. It can meet the experimental training requirements of courses such as "Motor Drive and Speed Regulation," "Basic Experiments of Motors and Drives," "Electrical Machines," and "Motors and Transformers . " It is particularly suitable for upgrading and transforming existing motor drive and control, AC/DC speed regulation training equipment in higher education institutions. It also provides ideal experimental equipment for secondary vocational schools and vocational colleges to quickly establish experimental courses when building or expanding laboratories.

This equipment is equipped with both voltage-type and current-type leakage protection devices to ensure operator safety. Each power output has monitoring and short-circuit protection functions, making it easy to use. All measuring instruments have protection functions. The entire system is meticulously designed, and with reliable component quality and manufacturing processes as a guarantee, the product performs excellently. All of these factors create conditions for open-ended experiments, which are conducive to improving students' ability to analyze and solve problems.

1. Input power: Three-phase four-wire (or three-phase five-wire) ~380V±10% 50Hz
2. Operating environment: Temperature -10℃～+40℃, relative humidity <85% (25℃)
3. Device capacity: <1.5KVA
4. Weight: ≤200Kg
5. External dimensions: 1650 * 750 * 1600 cm³, table height approximately 750 mm ;
6. Casters: 100*60 mm
7. Equipped with voltage-type and current-type leakage protection, and automatic protection function with microcontroller-based full-process monitoring for phase-to-phase and line-to-line overload or short circuit.
8. Equipped with a timer/alarm recorder, suitable for open teaching environments in the laboratory, facilitating teacher management and assessment of experiments.

1. Introduction to the Experiment
2. DC Generators (Series Wound, Shunt Wound, Compound Wound)
3. Characteristics of DC Shunt Motors
4. DC Motor Starting: Series Resistance Starting, Reduced Voltage Starting
5. Methods for Changing the Direction of a DC Motor
6. Experiment on the Speed Regulation Characteristics of DC Motors: Changing the Series Resistance in the Armature Circuit, the Series Resistance in the Excitation Circuit, and Reducing the Armature Voltage
7. Mechanical characteristics of a separately excited DC motor

1. Single-phase transformer turns ratio K;
2. Single-phase transformer no-load test, measuring transformer no-load data IO, PO, and UO;
3. Single-phase transformer short-circuit test, measuring transformer short-circuit data UK, IK, and RK;
